E-VLXESP32
Device Information
Model Reference: PGEVLXESP32AC1
Manufacturer: PG LAB Electronics
Overview

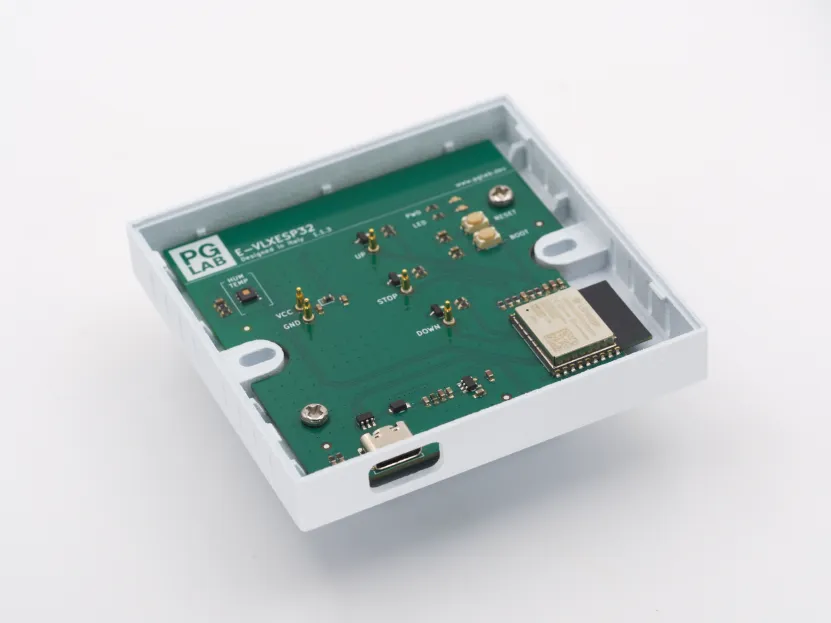

The E-VLXESP32 is a compact ESP32-based module with an integrated temperature and humidity sensor. It is designed to interface with battery-powered VELUX® wall remote controls, enabling smart automation and remote operation of motorized skylight windows. The module electrically interfaces with the wall remote via pogo pins, enabling it to emulate button presses via software control.
The device ships pre-flashed with ESPHome firmware and can be adopted directly from the ESPHome dashboard or provisioned via BLE using Improv standard for configuring Wi-Fi credentials. It is mains-powered (220V AC) and designed for permanent wall installation.
The E-VLXESP32 is available at pglab.dev.
Features
- Wi-Fi control of VELUX® wall remotes
- Full control of window operations (open, close, stop)
- Integrated temperature and humidity sensing
- Snap-fit installation (no soldering required)
- No batteries required
- Compatible with standard 501 wall boxes
- CE and RoHS certified
Hardware
| Component | Description |
|---|---|
| MCU | ESP32-C3 (ESP32-C3-WROOM-02-N4) |
| Sensor | HDC1080 (temperature & humidity) |
| Interface | Pogo pins for KLI311, KLI312, KLI313 |
| Programming Port | USB-C |
| Power Module | IRM-01-5 AC-DC |
| Power Input | 220V AC, 50/60 Hz (screw terminal) |
| Enclosure | MJF 3D printed, Nylon PA12 (white) |
Installation
Installation guide is available here.
⚠️ This product must be installed by qualified personnel. Incorrect installation may result in equipment damage, electric shock, or personal injury. The manufacturer assumes no liability for improper use or installation.
Getting Started
⚠️ Ensure mains power is disconnected before installation.
- Turn off the circuit breaker.
- Install the device into the 501 wall box.
- Snap-fit the VELUX® wall remote cover (KLI311, KLI312, KLI313).
- Restore power at the circuit breaker.
- Connect to the E-VLXESP32 hotspot and select your Wi-Fi network.
- Adopt the device in Home Assistant via the ESPHome integration.
Links
Product Images

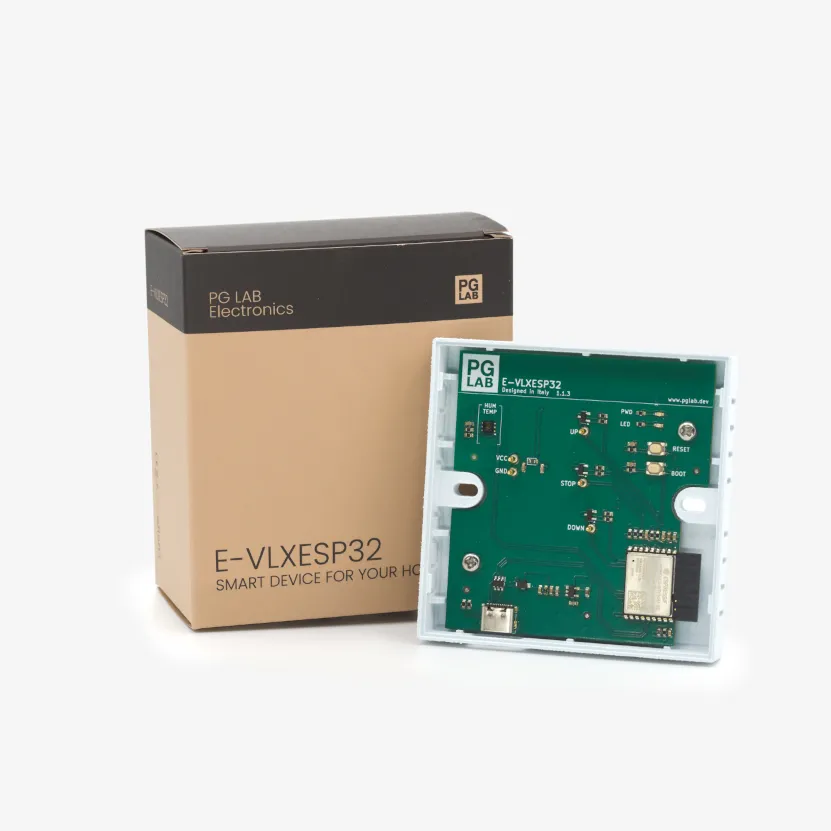

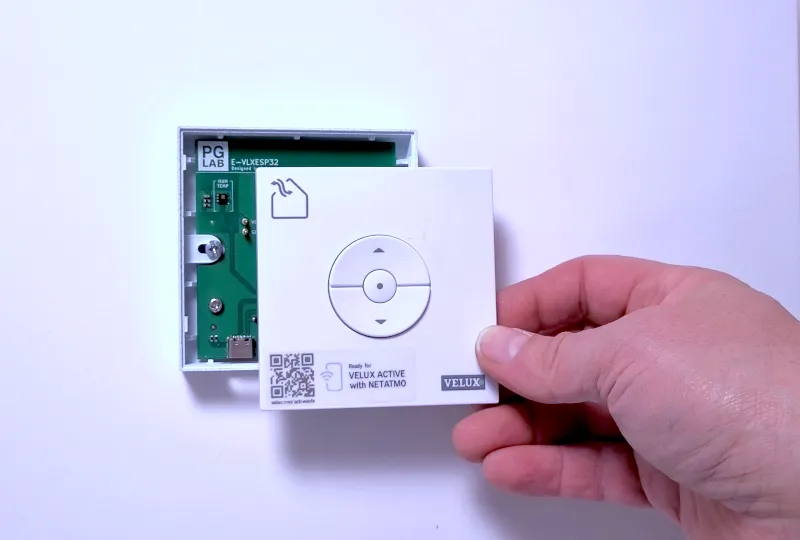

| Box | Back view | Wall installed |
|---|---|---|
 |  |  |
Configuration
The current firmware configuration is fetched live from the upstream repository:
# Loading https://github.com/pglab-electronics/e-vlxesp32/blob/main/evlxesp32.yaml…Disclaimers
The E-VLXESP32 is an independent third-party product developed and manufactured by PG LAB Electronics S.R.L.S. It is not affiliated with, endorsed by, or sponsored by VELUX A/S or its affiliates.
VELUX® is a registered trademark of its respective owner. References to VELUX® products are provided solely to indicate compatibility.
Compatibility is limited to the following remote control models: KLI311, KLI312, KLI313. Compatibility with other devices or future revisions is not guaranteed.
