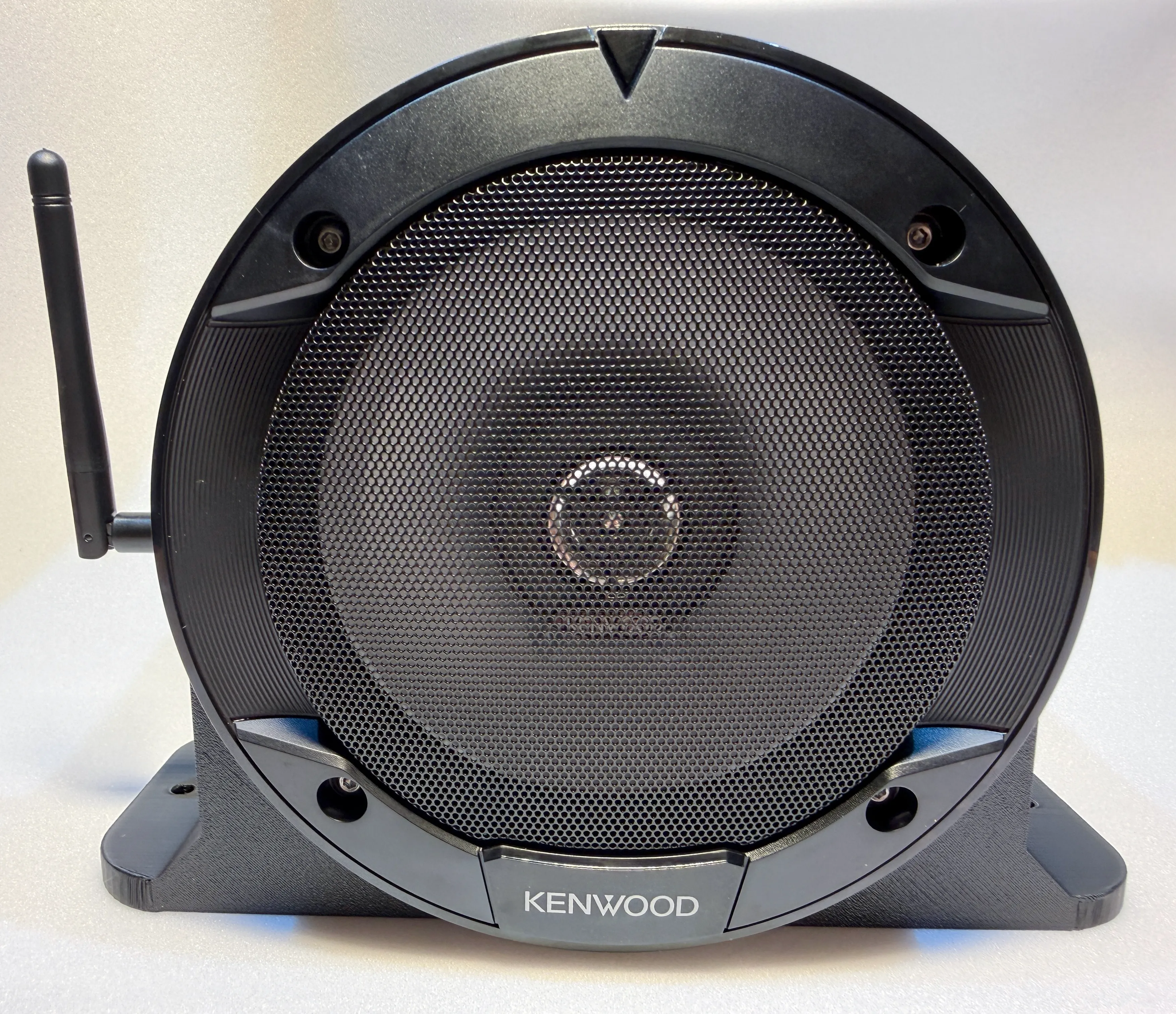

NeatoFx Audio 50

Overview

The NeatoFx Audio 50 is a WiFi-enabled audio and automation controller for themed attractions, escape rooms, haunted houses, and interactive installations. It combines a 50 W amplified MP3 player, two relay outputs, two dimmable spotlight outputs, and optional 4-channel RF wireless inputs in a single pre-flashed networked unit.

Ships with a Kenwood KFC-1666S 6.5” 2-way speaker and includes battery backup with automatic switchover on power loss.

Applications: haunted house scares, shooting gallery hit audio, escape room narrative progression, scavenger hunt clues, museum exhibit narration, themed restaurant moments.

Key features:

• TPA3116D2 50 W amplifier with included Kenwood KFC-1666S 6.5” speaker (4–8 Ω)
• DFPlayer Mini MP3 playback from MicroSD (FAT32, up to 32 GB, 4-digit filename prefix)
• Playback modes: single file, random from folder, sequential playlist, background loop with event interruption
• 2 wired trigger inputs (digital, debounced, 3.3 V logic)
• Optional 4-channel 433 MHz RF receiver (A/B/C/D wireless buttons)
• Per-input configurable: specific track or random selection
• 2 × SPDT relay outputs — 15 A @ 12 VDC / 250 VAC; trigger at audio start, end, or after delay
• 2 × FET dimmable spotlight outputs — 4.2 A each, 12 V, PWM 0–100%, sync to audio events
• Software volume control (0–30, persistent across reboots)
• Battery backup with automatic switchover
• Home Assistant native (ESPHome API), FPP, and MQTT compatible
• Standalone AP mode; hotspot audio-XX, web UI at 192.168.4.1
• OTA firmware updates

Hardware

Component	Specification
MCU	ESP32-WROOM-32UE
Input voltage	12 V DC
Amplifier	TPA3116D2, 50 W
Speaker (included)	Kenwood KFC-1666S 6.5” 2-way, 4–8 Ω
Audio storage	MicroSD, FAT32, up to 32 GB
Audio format	MP3 (128 kbps minimum recommended), 4-digit filename prefix
Max files	Up to 255 in standard operation (3,000 on card)
Relay outputs	2 × SPDT, 15 A @ 12 VDC / 250 VAC
Spotlight outputs	2 × FET, 4.2 A each, 12 V, PWM dimmable
Wired inputs	2 × digital, debounced, 3.3 V logic
RF inputs	4-channel 433 MHz (optional add-on, A/B/C/D)
WiFi	802.11 b/g/n 2.4 GHz
Battery backup	Yes — automatic switchover on power loss

PCB revisions

• Rev 2.3 — original design
• Rev 2.4 / 2.5 / 2.6 — same pinouts; RFTX connector configurable as 4 RF inputs or trigger outputs; Rev 2.6 is the latest

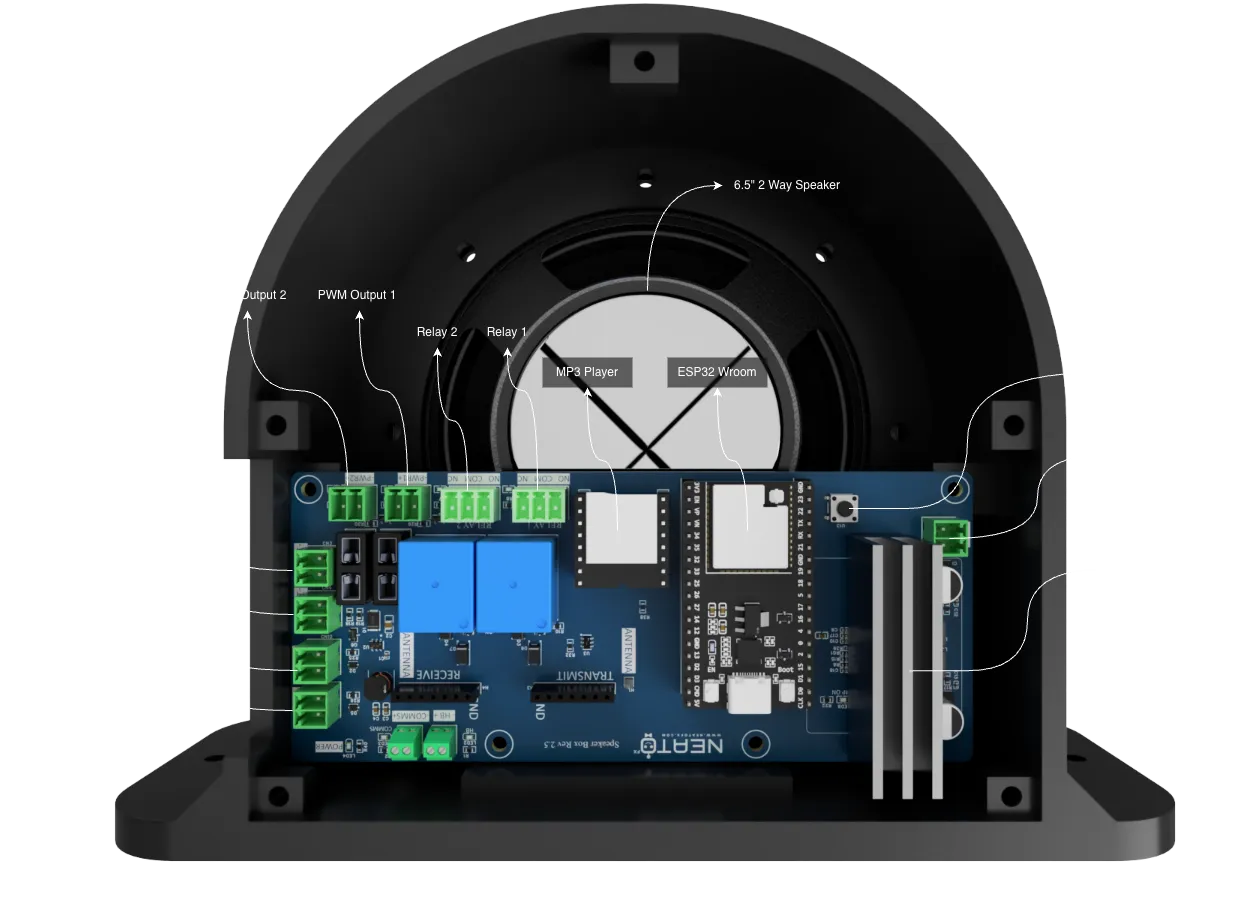

Hardware Pinout

GPIO Pinout

GPIO	Function
GPIO17	DFPlayer Mini UART TX (→ DFPlayer RX)
GPIO16	DFPlayer Mini UART RX (← DFPlayer TX)
GPIO26	Relay 1 output
GPIO27	Relay 2 output
GPIO33	FET 1 — SpotLight 1 (LEDC PWM)
GPIO25	FET 2 — SpotLight 2 (LEDC PWM)
GPIO0	Amplifier wake (active-high)
GPIO5	Amplifier unmute (active-low)
GPIO22	Heartbeat LED output
GPIO23	Status LED (active-low)
GPIO4	RF TX power enable
GPIO34	Wired input 1 (active-low)
GPIO39	Wired input 2 (active-low)
GPIO32	Push button (INPUT_PULLUP)
GPIO36	RF remote button A
GPIO2	RF remote button B
GPIO15	RF remote button C
GPIO35	RF remote button D

Quick Start

1. Power on — device broadcasts WiFi hotspot audio-XX (unit-specific)
2. Connect phone or laptop to the hotspot — captive portal opens at 192.168.4.1
3. Select your venue WiFi network and enter credentials
4. Device reboots and joins the network
5. Home Assistant discovers the device within 60 seconds
6. Access web UI via local hostname (e.g., audio-1.local) to configure tracks, volume, and outputs

For standalone operation (no hub), skip steps 3–5 and use the web UI at 192.168.4.1.

Configuration

https://github.com/esphome/devices.esphome.io/blob/main/src/docs/devices/NeatoAudio50/config.yaml

substitutions:
  id: "1"
  name: audio-${id}
  friendly_name: "NeatoFx Audio ${id}"

packages:
  board: github://CodeMakesItGo/NeatoFx_Public/Audio/NeatoAudio50/boards/rev2_4.yaml@main
  rftx: github://CodeMakesItGo/NeatoFx_Public/Audio/NeatoAudio50/boards/common/rftx_none.yaml@main
  config: github://CodeMakesItGo/NeatoFx_Public/Audio/NeatoAudio50/configs/home_assistant.yaml@main

For a fully networked install with Home Assistant, RF inputs, FPP support, and audio scripts, import the complete configuration:

The current firmware configuration is fetched live from the upstream repository:

# Loading https://github.com/CodeMakesItGo/NeatoFx_Public/blob/main/Audio/NeatoAudio50/main.yaml…

Variants

All variants are selected via commented includes in main.yaml:

Option	Choices
Board revision	boards/rev2_4.yaml (Rev 2.4/2.5/2.6, default) or boards/rev2_3.yaml (Rev 2.3)
RFTX connector	boards/rftx_outputs.yaml (trigger outputs, default) or boards/rftx_inputs.yaml (4 RF inputs)

Operating modes

• Standalone — creates its own WiFi AP. Use configs/standalone.yaml.
• Networked — joins home WiFi and exposes the Home Assistant ESPHome API. Use configs/networked.yaml.
