temp-1w8-pro
Device Type:
Electrical Standard:
Board:
Difficulty:Comes with ESPhome (1/5)
Project URL:https://temp-1w8-pro.makerspace.lt/

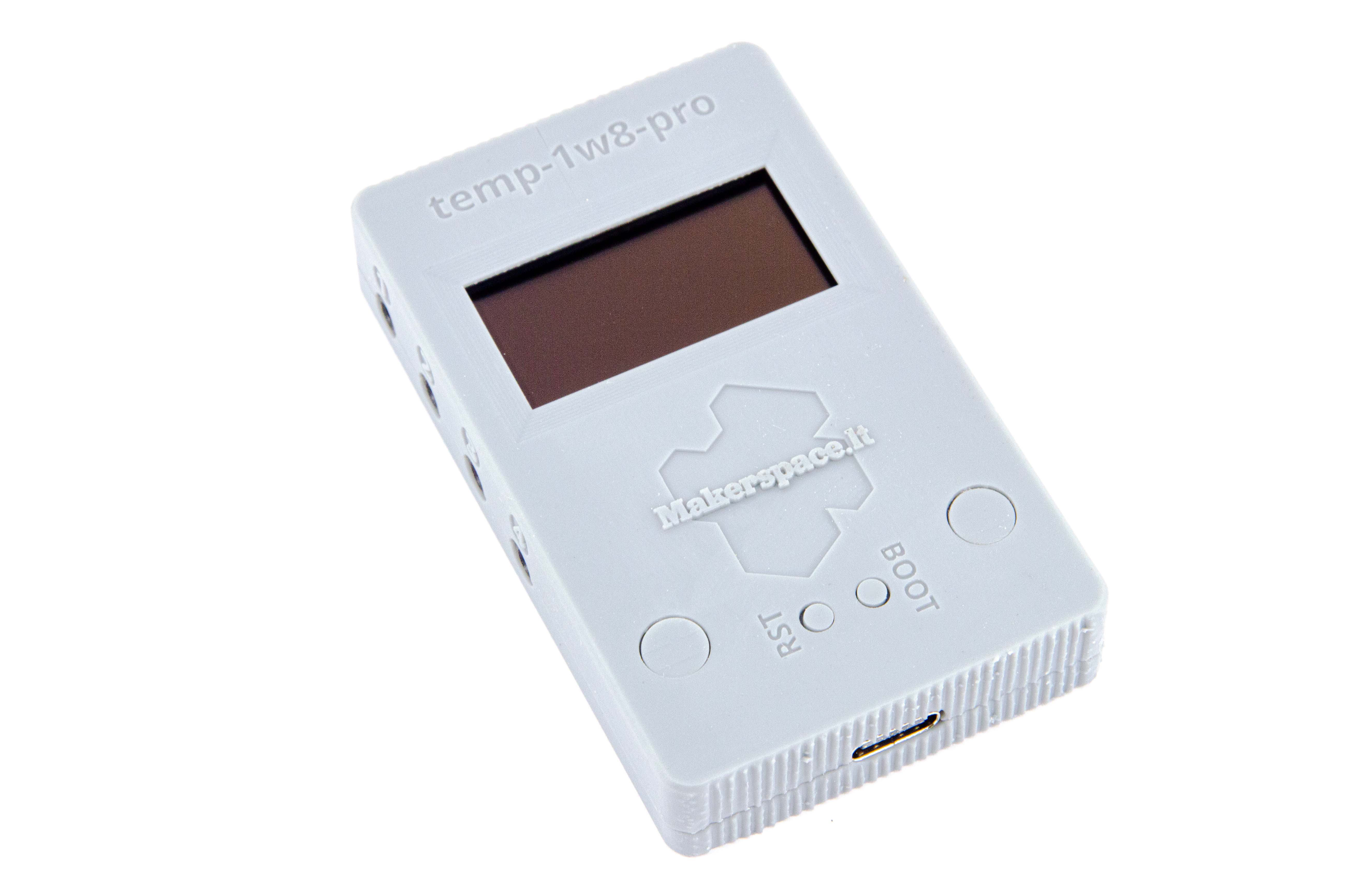

temp-1w8-pro: measure temperature with up 8 sensors
This device is specifically designed for temperature monitoring with up to 8 thermometers.
Key features:

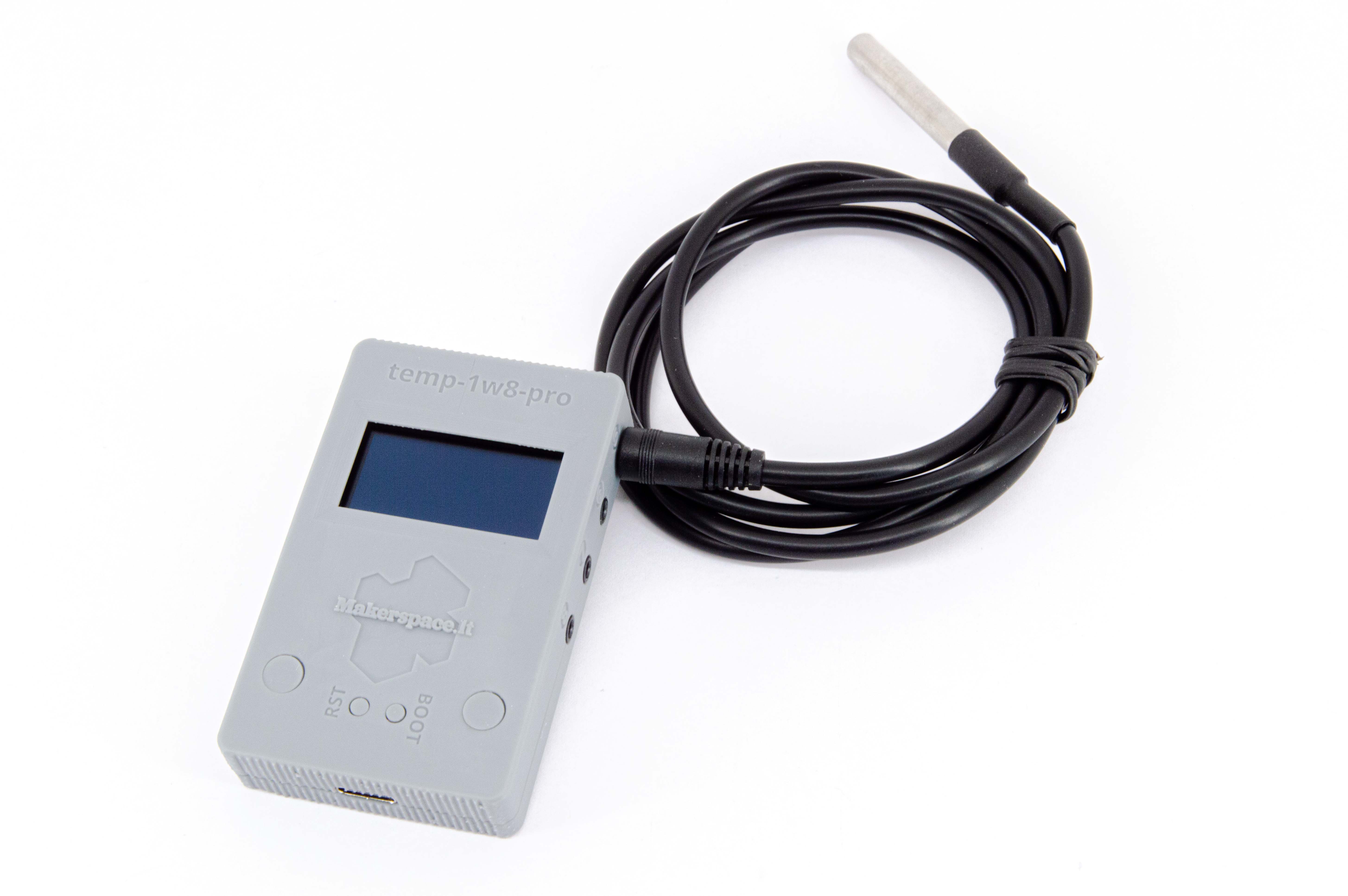

- 8x 1-wire interfaces for DS18B20 Dallas temperature sensors using 2.5mm 4p audio jack connectors (available out-of-the-box on most e-commerce)
- 2x general-purpose, user programmable buttons
- 128x64 OLED display
- Powered via USB-C
- Compatibility with ESPHome and HomeAssistant
- Comes pre-flashed and ready to use without any additional configuration
- YAML configuration file is available for easy configuration
- OSHWA certified
Configuration
The current firmware configuration is fetched live from the upstream repository:
# Loading https://github.com/makerspacelt/temp-1w8-pro-sw/blob/master/factory.yaml…
