KMP PRODINo ESP32EX

KMP PRODINo ESP32EX

Device Type: misc
Electrical Standard: global
Board: esp32

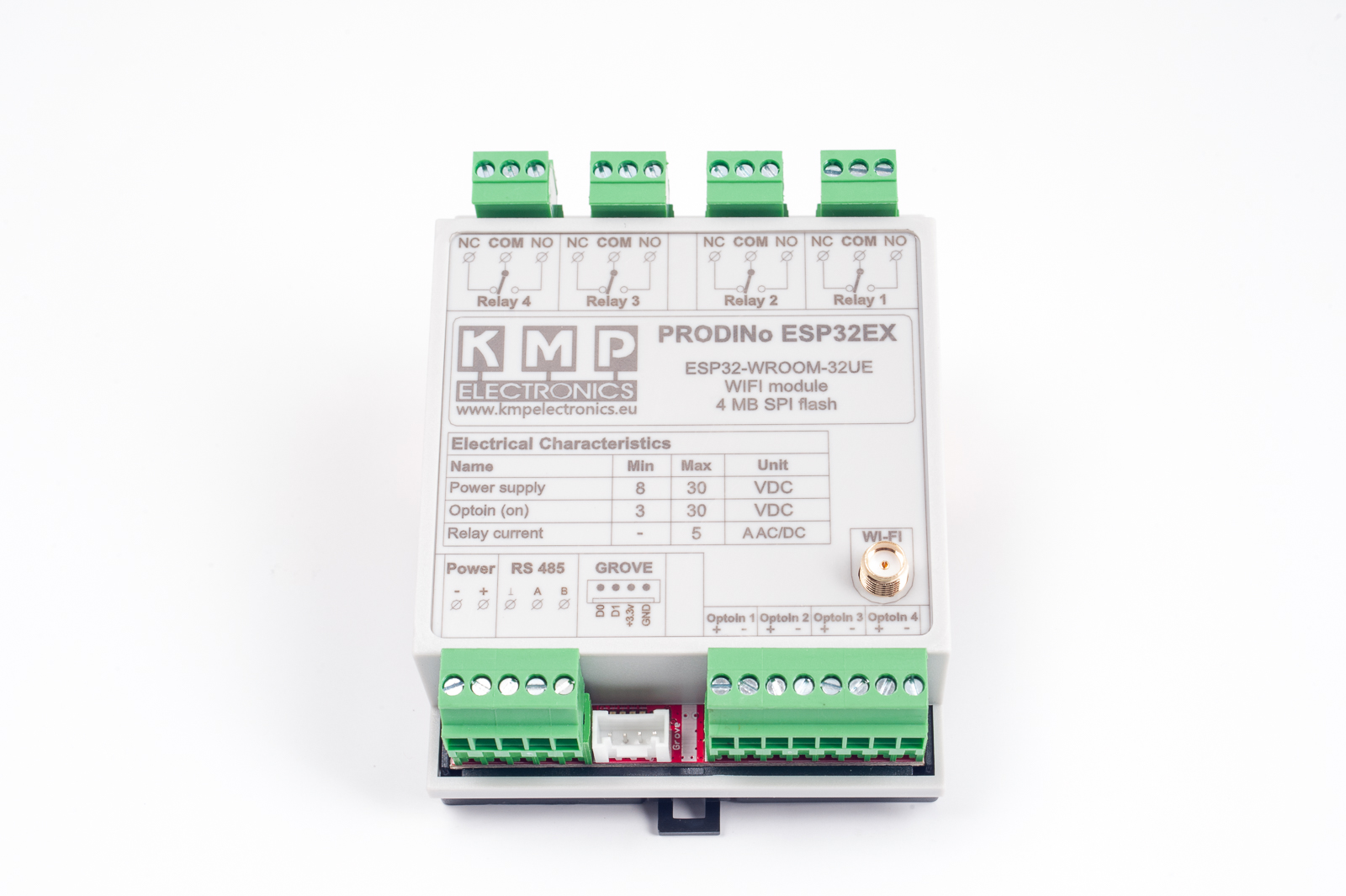

alt text

Manufacturer: KMP Electronics

GPIO Pinout

PinFunction
GPIO16TX RS485
GPIO04RX RS485
GPIO02flow_controll RS485
GPIO0WS2812B RBG Status LED
GPIO32mcp23s08_hub

Basic Configuration

# Basic Config
esphome:
name: prodino1
platform: ESP32
board: esp-wrover-kit
wifi:
ssid: "ssid"
password: "password"
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Prodino1 Fallback Hotspot"
password: "Y43RDknj74vq"
captive_portal:
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: !secret encryption_key
ota:
password: "password"
#optional onewire
#one_wire:
# - pin: GPIO21
sensor:
#optional onewire
# - platform: dallas_temp
# address: 0xcb021564bbacffff
# name: "Ds18B20 Temperature"
- platform: dht
model: AM2302
pin: GPIO21
temperature:
name: "Living Room Temperature1"
humidity:
name: "Living Room Humidity1"
update_interval: 30s
- platform: dht
model: AM2302
pin: GPIO22
temperature:
name: "Living Room Temperature2"
humidity:
name: "Living Room Humidity2"
update_interval: 30s
spi:
clk_pin: GPIO18
mosi_pin: GPIO23
miso_pin: GPIO19
# Modbus RS485 from here
uart:
id: mod_bus
tx_pin: GPIO16
rx_pin: GPIO04
baud_rate: 9600
parity: even
stop_bits: 1
debug:
modbus:
flow_control_pin: GPIO02
id: modbus1
modbus_controller:
- id: modbusc1
## the Modbus device addr
address: 0x1
modbus_id: modbus1
setup_priority: -10
# Modbus RS485 till here
mcp23s08:
- id: 'mcp23s08_hub'
cs_pin: GPIO32
deviceaddress: 0
# Individual outputs
switch:
- platform: gpio
name: "RELAY4"
pin:
mcp23s08: mcp23s08_hub
# Use pin number 4
number: 4
mode: OUTPUT
inverted: False
- platform: gpio
name: "RELAY3"
pin:
mcp23s08: mcp23s08_hub
# Use pin number 5
number: 5
mode: OUTPUT
inverted: False
- platform: gpio
name: "RELAY2"
pin:
mcp23s08: mcp23s08_hub
# Use pin number 6
number: 6
mode: OUTPUT
inverted: False
- platform: gpio
name: "RELAY1"
pin:
mcp23s08: mcp23s08_hub
# Use pin number 7
number: 7
mode: OUTPUT
inverted: False
binary_sensor:
- platform: gpio
name: "INPUT1"
pin:
mcp23s08: mcp23s08_hub
# Use pin number 3
number: 3
# One of INPUT or INPUT_PULLUP
mode: INPUT
inverted: True
- platform: gpio
name: "INPUT2"
pin:
mcp23s08: mcp23s08_hub
# Use pin number 2
number: 2
# One of INPUT or INPUT_PULLUP
mode: INPUT
inverted: True
- platform: gpio
name: "INPUT3"
pin:
mcp23s08: mcp23s08_hub
# Use pin number 1
number: 1
# One of INPUT or INPUT_PULLUP
mode: INPUT
inverted: True
- platform: gpio
name: "INPUT4"
pin:
mcp23s08: mcp23s08_hub
# Use pin number 0
number: 0
# One of INPUT or INPUT_PULLUP
mode: INPUT
inverted: True
light:
- platform: fastled_clockless
chipset: WS2812B
pin: GPIO0
num_leds: 1
rgb_order: GRB
name: "LED WS2812B"
