Everything Presence Lite

Device Type:sensor
Electrical Standard:global
Board:esp32
Difficulty:Comes with ESPhome (1/5)
Project URL:https://github.com/EverythingSmartHome/everything-presence-lite

Everything Presence Lite

Description

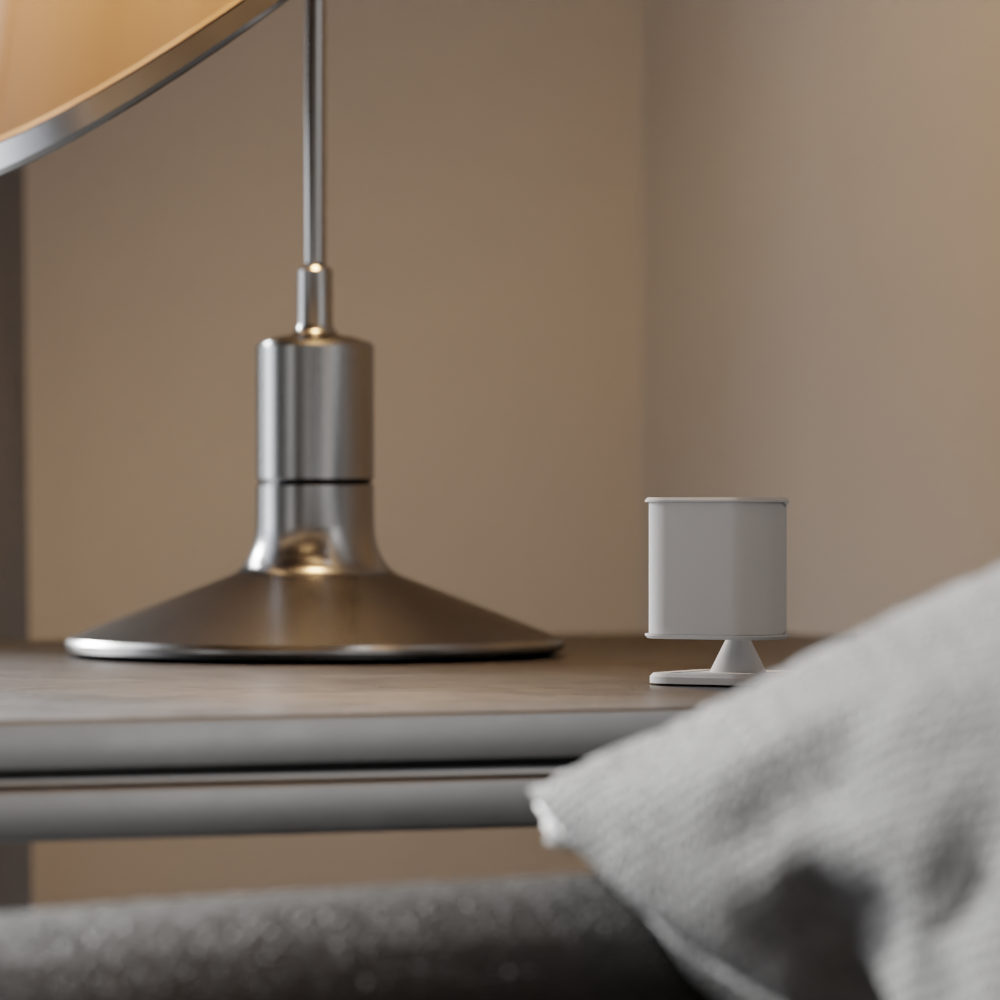

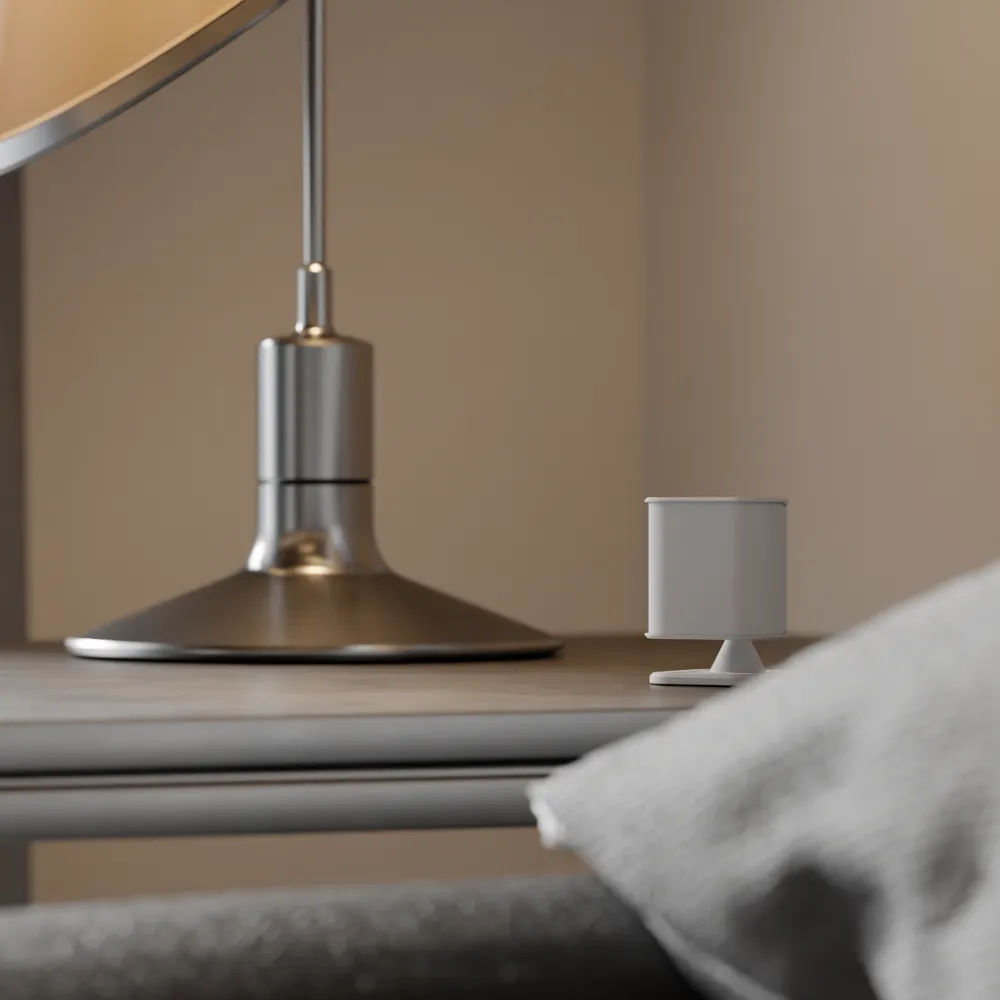

The Everything Presence Lite is a compact mmWave presence sensor with the following features:

  • HiLink LD2450 24GHz mmWave sensor with up to 6m detection range
  • Multi-target tracking (up to 3 targets simultaneously)
  • BH1750 Light intensity sensor for ambient light detection
  • Visual Zone Configurator for easy zone-management
  • Up to 4 configurable detection zones
  • Up to 2 exclusion zones
  • Bluetooth Proxy functionality for Home Assistant
  • USB-C powered with injection molded case

Compatible with multiple mmWave sensors including:

  • DFRobot SEN0395
  • HiLink LD2410C
  • Various Seeed mmWave sensors

Zones

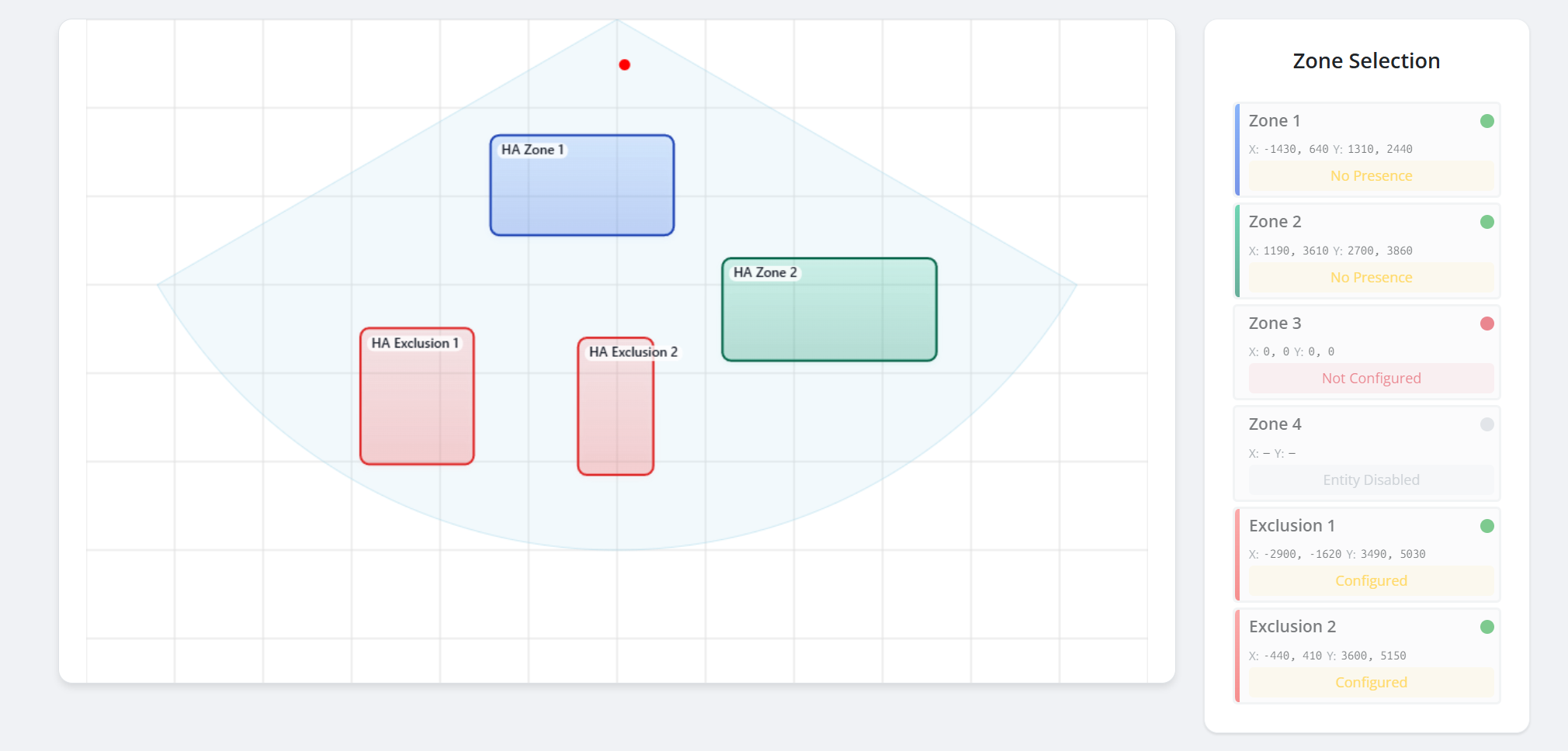

The Everything Presence Zone Configurator makes it easy to setup zones and exclusion zones visually with real-time feedback: Everything Presence Lite Zone Configurator

Setup

  1. Plug in the Everything Presence Lite via USB-C.
  2. Using the Home Assistant Mobile App, go to Settings > Devices and find the auto discovered Everything Presence Lite
  3. Hit add and enter WiFi details
  4. In Home Assistant, look at discovered devices.

Configuration

The current firmware configuration is fetched live from the upstream repository:

# Loading https://github.com/EverythingSmartHome/everything-presence-lite/blob/main/everything-presence-lite-ha.yaml…
