Brilliant Smart Wi-Fi RGB Garden Light

Brilliant Smart Wi-Fi RGB Garden Light

Device Type: light
Electrical Standard: au
Board: esp8266

General Notes

This configuration is for the Brilliant Smart Wi-Fi RGB Garden Light which comes as a kit with 4 LED RGB spotlights, a transformer and the controller.

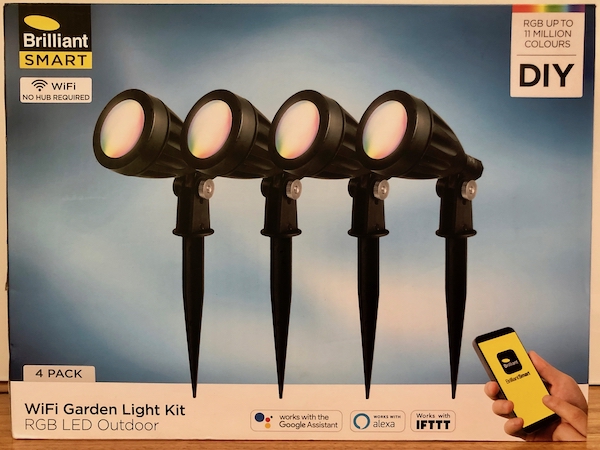

Brilliant Smart Wi-Fi RGB Garden Light Kit

GPIO Pinout

PinFunction
GPIO4Red Channel
GPIO12Green Channel
GPIO14Blue Channel

Basic Configuration

esphome:
  name: garden_light
  platform: ESP8266
  board: esp01_1m


wifi:
  ssid: "ssid"
  password: "password"


logger:


web_server:


api:
  encryption:
    key: !secret api_encryption_key


ota:
  password: "ota_password"


light:
  - platform: rgb
    name: "Garden Light"
    id: me
    red: output_red
    green: output_green
    blue: output_blue
    restore_mode: RESTORE_DEFAULT_OFF
    effects:
      - lambda:
          name: RedGreenFade
          update_interval: 4s
          lambda: |-
            static int state = 0;
            auto call = id(me).turn_on();
            // Transtion of 1000ms = 1s
            call.set_transition_length(4000);
            if (state == 0) {
              call.set_rgb(1.0, 0.0, 0.0);
            } else if (state == 1) {
              call.set_rgb(0.0, 1.0, 0.0);
            } else if (state == 2) {
              call.set_rgb(0.0, 0.0, 1.0);
            } else {
              call.set_rgb(1.0, 0.0, 0.0);
            }
            call.perform();
            state += 1;
            if (state == 2) // repeat only the red and green from christmas
              state = 0;


output:
  - platform: esp8266_pwm
    id: output_red
    pin: GPIO4
  - platform: esp8266_pwm
    id: output_green
    pin: GPIO12
  - platform: esp8266_pwm
    id: output_blue
    pin: GPIO14
