BeaverDam Sprinkler

Device Type:misc
Electrical Standard:global
Board:esp32
Difficulty:Comes with ESPhome (1/5)
Project URL:https://github.com/thebeaverdam/ESP32_SprinklerSystem

ESP32 MultiBoard

The BeaverDam Sprinkler System is designed to bring advanced, automated control to your irrigation system, leveraging the power of the ESP32 microcontroller and seamless integration with Home Assistant.

This board offers a robust and flexible platform for managing up to 8 independent irrigation zones. It’s engineered for reliability and ease of use, making it ideal for both DIY enthusiasts and professional installers looking to upgrade traditional irrigation systems to a smart, app-controlled environment.

Is designed to be compatible with both 12V DC and 24V AC irrigation solenoid valves, depending on the specific model of the board. This flexibility ensures it can integrate with a wide range of existing irrigation systems, reducing the need for costly valve replacements.

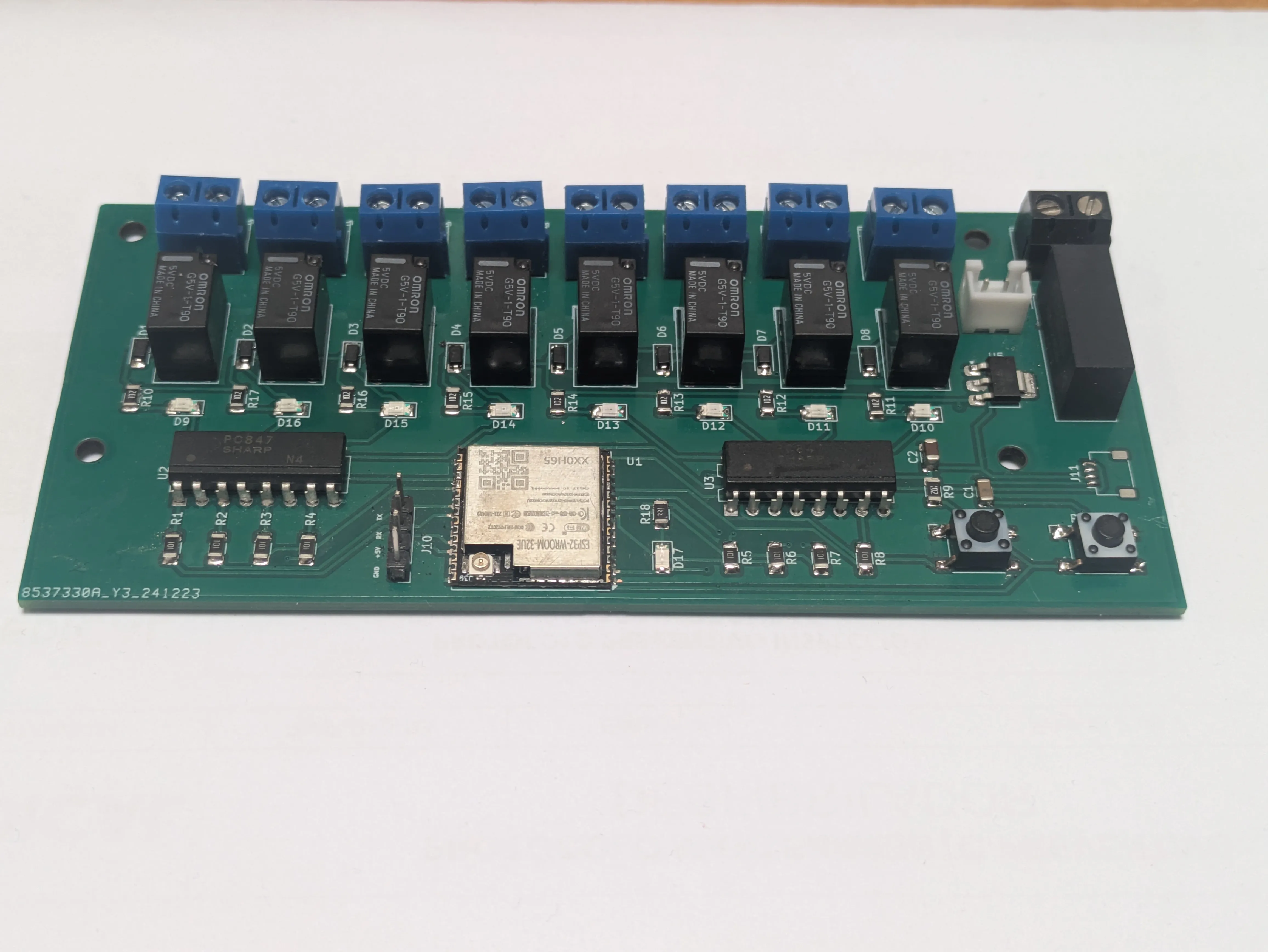

Sprinkler

🧩 Specifications

  • Power Supply: 12V or 24V DC input
  • Qwiic Connector: For I²C peripherals (3.3V)
  • 8 zone valve control
  • ESPHome Compatible: Designed to easily integrate with ESPHome.

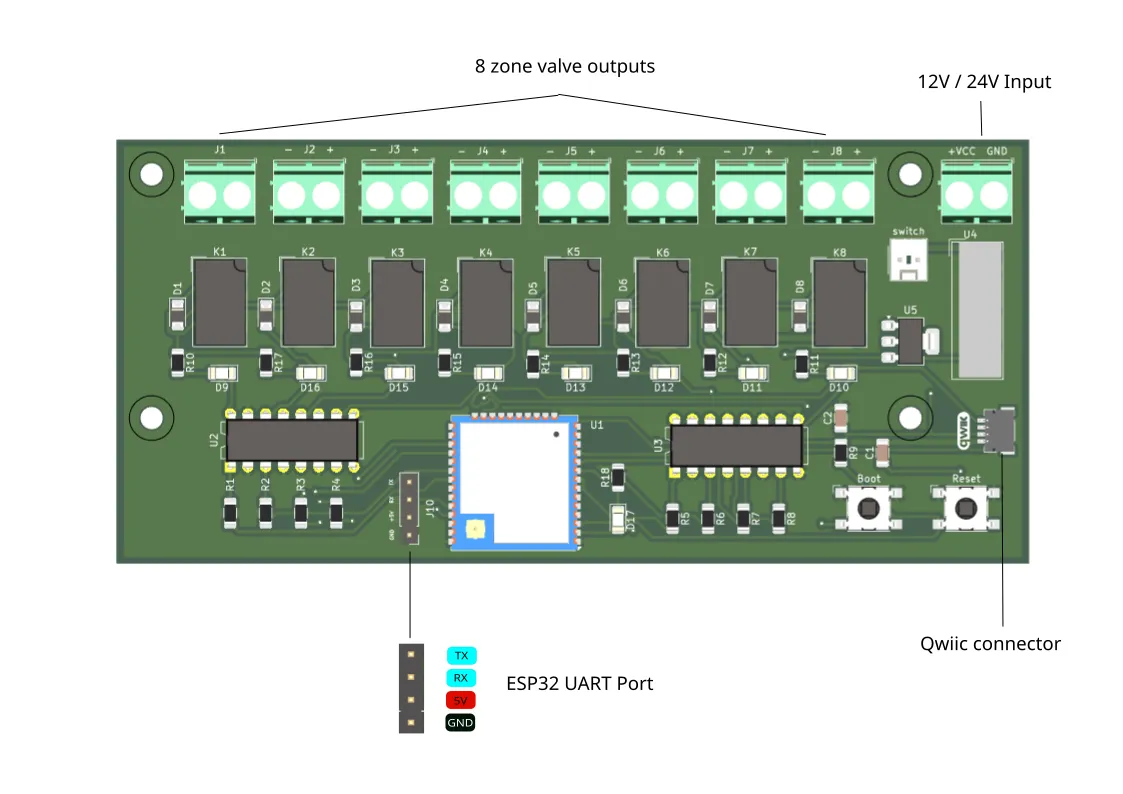

Pinout

Pinout

Configuration

The current firmware configuration is fetched live from the upstream repository:

# Loading https://github.com/thebeaverdam/ESP32_SprinklerSystem/blob/main/firmware/sprinkler.yaml…
