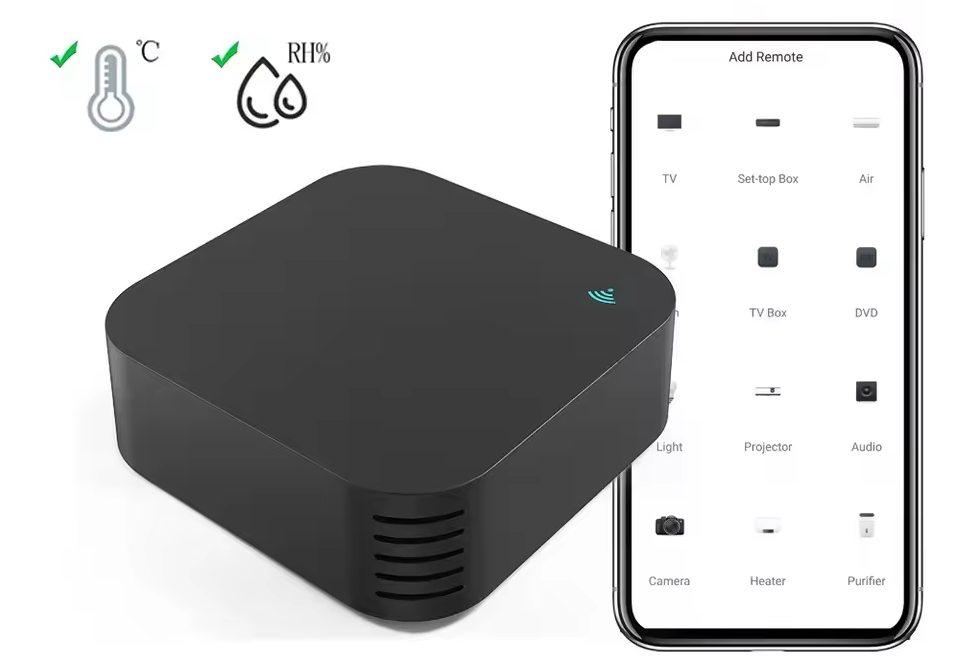

AVATTO S06Pro WiFi IR Universal Remote Controller

General Notes

There’s two hardware iterations of this particular IR blaster: with and without AHT20 Sensor, and a simple one that doesn’t have additional sensors. Outwardly, both appear identical.

GPIO Pinout

Pin	Function
GPIO8	Blue Status LED
GPIO26	Remote Transmitter
GPIO7	Remote Receiver
GPIO6	Reset Button

Getting it up and running

This device needs very likely to be flashed manually. Tuya-convert didn’t worked for me. I have powered the device with a mobile charger during the flashing procedure, as the used serial cable sets to logic level based on the input voltage. Which is 3.3V in this case. To enter a BOOT mode short-circuit the CEN and GND outputs

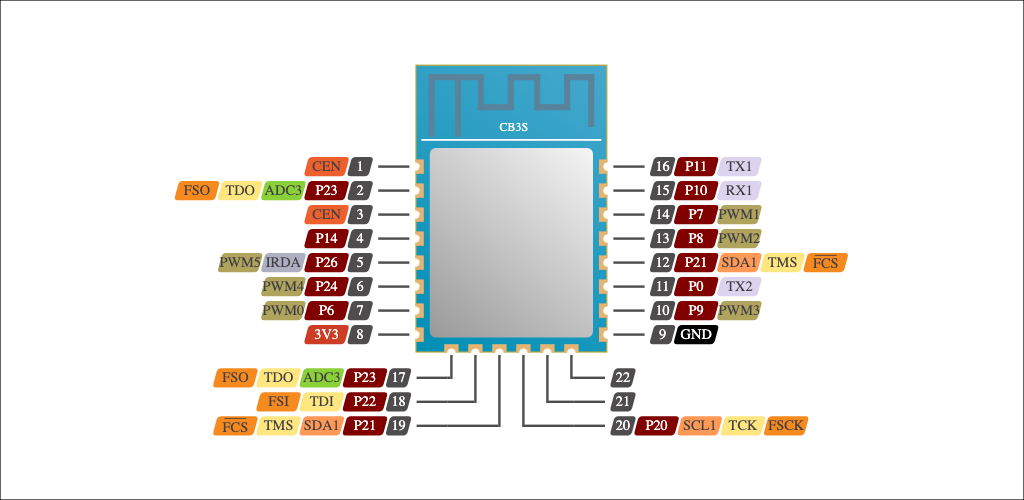

Serial	CB3S
RX	TX1
TX	RX1
RST	CEN
3.3V	3.3V
GND	GND

Flashing

# Create a backup of the original firmware
esptool.py -p /dev/ttyUSB0 -b 230400 read_flash 0x00000 0x100000 avotta_s06Pro_original_firmware.bin

# Erase the flash
esptool.py -p /dev/ttyUSB0 erase_flash

# Upload the esphome firmware
esptool.py -p /dev/ttyUSB0 write_flash -fs 1MB 0x0 ir_remote.bin

Configuration

# Basic Config
---
esphome:
  name: ir_remote

bk72xx:
  board: cb3s

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:

captive_portal:

# Enable logging
logger:
  level: DEBUG # Default

# Enable Home Assistant API
api:
  encryption:
    key: !secret api_encryption_key

ota:
  password: !secret ota_password

light:
  - platform: status_led
    name: "Status LED"
    pin: GPIO8

binary_sensor:
  - platform: gpio
    name: "Button"
    pin:
      number: 6
      inverted: true
      mode:
        input: true
        pullup: true

remote_transmitter:
  pin: GPIO26
  carrier_duty_percent: 50%

remote_receiver:
  pin:
    number: GPIO7
    inverted: true
    mode:
      input: true
      pullup: true

uart:
  rx_pin: RX1
  tx_pin: TX1
  baud_rate: 9600

tuya:

sensor:
  - platform: tuya
    sensor_datapoint: 101
    id: temperature
    name: "Temperature"
    unit_of_measurement: "°C"
    accuracy_decimals: 1
    filters:
      - multiply: 0.1
  - platform: tuya
    sensor_datapoint: 102
    id: humidity
    name: "Humidity"
    unit_of_measurement: "%"
    accuracy_decimals: 0
