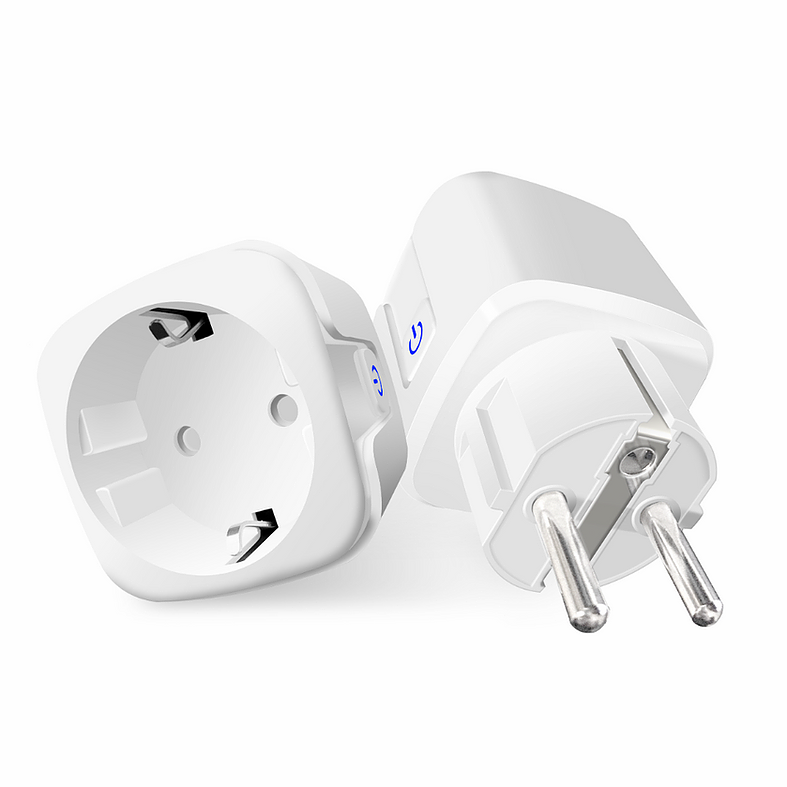

Athom Smart Plug TP29

Athom Smart Plug TP29

Device Type: plug
Electrical Standard: euukus
Board: esp8266

alt text Maker: https://www.athom.tech/

Also on Aliexpress, with preflashed Tasmota or Homekit.

GPIO Pinout

PinFunction
GPIO3Button
GPIO4BL0937 CF
GPIO5HLWBL CF1
GPIO12HLWBL SELi
GPIO13LedLink
GPIO14Relay

Basic Configuration

substitutions:
devicename: athomsmartplug
upper_devicename: Athom Smart Plug
# Higher value gives lower watt readout
current_res: "0.00225"
# Lower value gives lower voltage readout
voltage_div: "757"
esphome:
name: $devicename
platform: ESP8266
board: esp01_1m
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
captive_portal:
# Enable logging
logger:
# Enable Home Assistant API
api:
ota:
web_server:
port: 80
# Time used for daily KWh usage
time:
- platform: homeassistant
id: homeassistant_time
status_led:
pin:
number: GPIO0
inverted: yes
binary_sensor:
# Button 1 configuration
- platform: gpio
pin:
number: GPIO3
mode: INPUT_PULLUP
inverted: True
id: button_1
on_press:
then:
- switch.toggle: relay_1
on_click:
min_length: 5000ms
max_length: 10000ms
then:
- switch.turn_on: reset
- platform: status
name: "${upper_devicename} Status"
switch: # Set relays as switches
- platform: gpio
id: relay_1
icon: mdi:power-socket-uk
pin: GPIO14
name: "${upper_devicename} Switch"
on_turn_on:
- switch.turn_on: sw_led1
on_turn_off:
- switch.turn_off: sw_led1
# Register LED on GPIO
- platform: gpio
id: sw_led1
pin: GPIO13
inverted: True
- platform: restart
name: "${upper_devicename} Restart"
id: reset
sensor:
- platform: hlw8012
sel_pin:
number: GPIO12
inverted: True
cf_pin: GPIO04
cf1_pin: GPIO5
current_resistor: ${current_res}
voltage_divider: ${voltage_div}
current:
name: "${upper_devicename} Amperage"
unit_of_measurement: A
accuracy_decimals: 3
icon: mdi:flash-circle
voltage:
name: "${upper_devicename} Voltage"
unit_of_measurement: V
icon: mdi:flash-circle
power:
name: "${upper_devicename} Wattage"
unit_of_measurement: W
id: "${devicename}_Wattage"
icon: mdi:flash-circle
change_mode_every: 4
update_interval: 10s
- platform: total_daily_energy
name: "${upper_devicename} Total Daily Energy"
power_id: "${devicename}_Wattage"
filters:
# Multiplication factor from W to kW is 0.001
- multiply: 0.001
unit_of_measurement: kWh
icon: mdi:clock-alert
- platform: uptime
name: "${upper_devicename} Uptime"
icon: mdi:clock-outline
- platform: wifi_signal
name: "${upper_devicename} Wifi Signal"
update_interval: 60s
