Athom Human Presence Sensor (PS01)

Athom Human Presence Sensor (PS01)

Device Type: sensor
Electrical Standard: global
Board: esp8266
Difficulty: Comes with ESPhome, 1/5

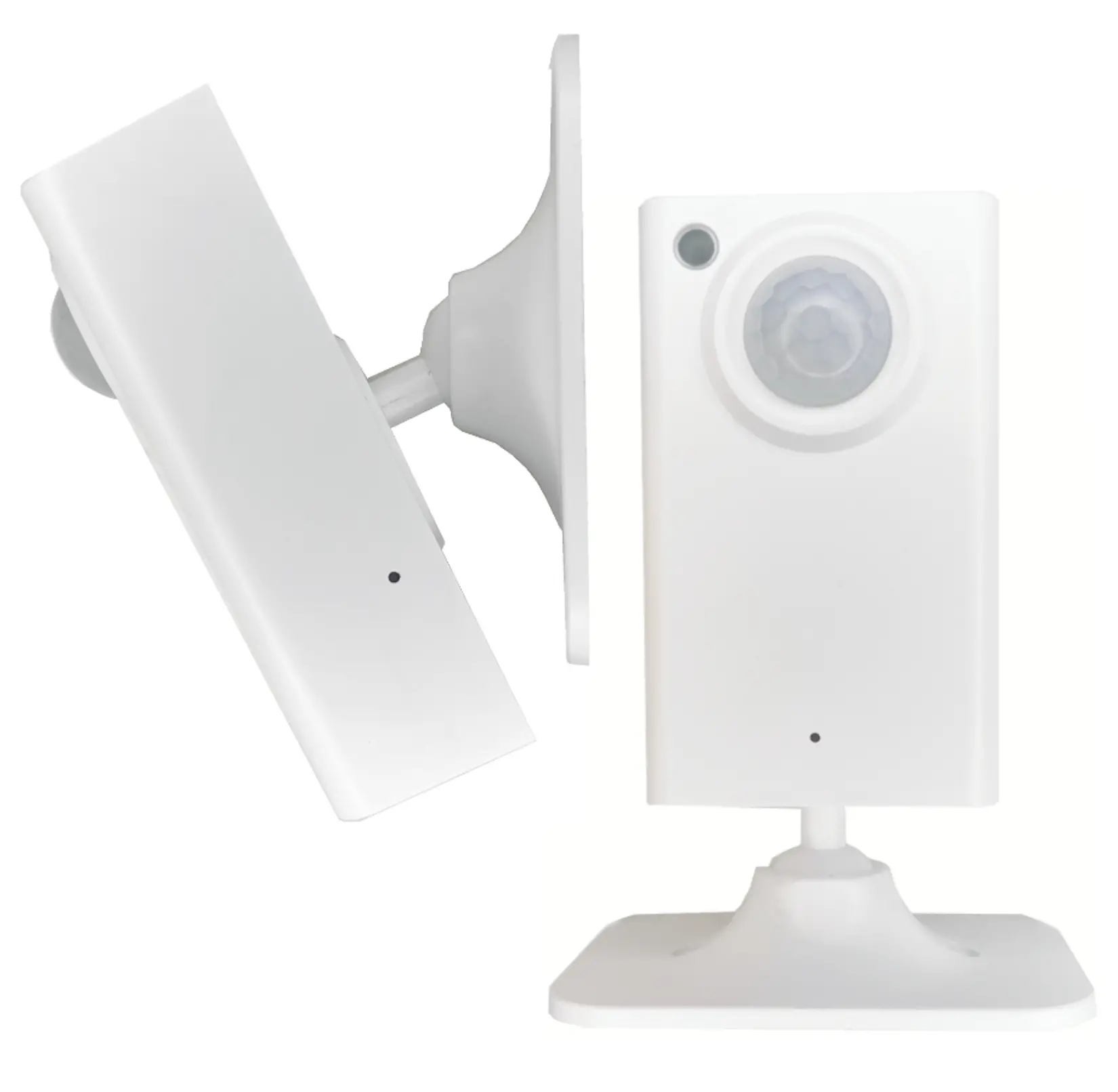

alt text

Maker: https://www.athom.tech/

Available from

Athom Aliexpress

Note

Built-in CH340C serial port chip, connect the Type-C data cable to flash the firmware directly (the attached Type-C cable has no data cable, you need to prepare the Type-C data cable to flash the firmware)

GPIO Pinout

PinFunction
GPIO0Button
GPIO12Pir Output
GPIO13Radar RX
GPIO14Radar Output
GPIO15Radar TX
GPIO16LedLink

Basic Configuration

substitutions:
name: "athom-presence-sensor"
friendly_name: "presence sensor"
room: ""
device_description: "mmwave radar human presence sensor"
project_name: "Athom Technology.Presence Sensor"
project_version: "1.0"
esphome:
name: "${name}"
friendly_name: "${friendly_name}"
name_add_mac_suffix: true
project:
name: "${project_name}"
version: "${project_version}"
esp8266:
board: esp8285
restore_from_flash: true
preferences:
flash_write_interval: 1min
# Enable logging
logger:
api:
ota:
mdns:
disabled: false
web_server:
port: 80
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
captive_portal:
dashboard_import:
package_import_url: github://athom-tech/athom-configs/athom-presence-sensor.yaml
light:
- platform: status_led
name: "Status LED"
id: led
pin: GPIO16
disabled_by_default: true
entity_category: config
i2c:
sda: GPIO4
scl: GPIO5
scan: true
uart:
tx_pin: GPIO15
rx_pin: GPIO13
baud_rate: 115200
# debug:
# direction: BOTH
# dummy_receiver: true
# after:
# delimiter: "\n"
# sequence:
# - lambda: UARTDebug::log_string(direction, bytes);
binary_sensor:
- platform: status
name: "Status"
- platform: gpio
pin:
number: GPIO0
mode: INPUT_PULLUP
inverted: true
name: "Button"
disabled_by_default: true
on_multi_click:
- timing:
- ON for at least 4s
then:
- button.press: factory_reset_device
- platform: gpio
pin:
number: GPIO14
mode:
input: true
pullup: true
name: "Pir Sensor"
id: pir
filters:
- delayed_on: 50ms
- delayed_off: 10s
device_class: motion
on_press:
then:
- light.turn_on: led
- platform: gpio
pin:
number: GPIO12
mode:
input: true
pullup: true
name: "mmWave Sensor"
id: mmwave
filters:
- delayed_on: 50ms
device_class: motion
on_release:
then:
- light.turn_off: led
- platform: template
name: "Occupancy"
id: occupancy
device_class: occupancy
lambda: |-
if ( id(mmwave).state and id(pir).state) {
return true;
}
else if (id(mmwave).state == 0) {
return false;
}
else {
return id(occupancy).state;
}
sensor:
- platform: uptime
name: "Uptime Sensor"
- platform: wifi_signal
name: "WiFi Signal Sensor"
update_interval: 60s
- platform: bh1750
name: "Light Sensor"
address: 0x23
update_interval: 5s
switch:
- platform: template
name: "mmWave Status"
id: "mmwave_sensor"
internal: true
entity_category: config
optimistic: true
restore_mode: DISABLED
turn_on_action:
- uart.write: "sensorStart\r\n"
turn_off_action:
- uart.write: "sensorStop\r\n"
number:
- platform: template
name: Farthest Detection #Value range: 1.9 ~ 12m Default: 6
id: Farthest_Detection
entity_category: config
min_value: 1.9
max_value: 12
initial_value: 6
optimistic: true
step: 0.1
restore_value: true
unit_of_measurement: m
mode: slider
set_action:
- switch.turn_off: mmwave_sensor
- delay: 500ms
- uart.write: !lambda
std::string ranges = "setRange 1.8 " + str_sprintf("%.1f",id(Farthest_Detection).state) + "\r\n";
return std::vector<uint8_t>(ranges.begin(), ranges.end());
- delay: 500ms
- uart.write: "saveConfig\r\n"
- delay: 500ms
- switch.turn_on: mmwave_sensor
- platform: template
name: Maintain Sensitivity #Value range: 0 ~ 9 Default Maintain sensitivity: 7 Default Trigger sensitivity: 5
id: Maintain_Sensitivity
entity_category: config
min_value: 0
max_value: 9
initial_value: 7
optimistic: true
step: 1
restore_value: true
mode: slider
set_action:
- switch.turn_off: mmwave_sensor
- delay: 500ms
- uart.write: !lambda
std::string sensitivitys = "setSensitivity " + str_sprintf("%.0f",id(Maintain_Sensitivity).state) + " " + str_sprintf("%.0f",id(Trigger_Sensitivity).state) + "\r\n";
return std::vector<uint8_t>(sensitivitys.begin(), sensitivitys.end());
- delay: 500ms
- uart.write: "saveConfig\r\n"
- delay: 500ms
- switch.turn_on: mmwave_sensor
- platform: template
name: Trigger Sensitivity #Value range: 0 ~ 9 Default Maintain sensitivity: 7 Default Trigger sensitivity: 5
id: Trigger_Sensitivity
entity_category: config
min_value: 0
max_value: 9
initial_value: 5
optimistic: true
step: 1
restore_value: true
mode: slider
set_action:
- switch.turn_off: mmwave_sensor
- delay: 500ms
- uart.write: !lambda
std::string sensitivityss = "setSensitivity " + str_sprintf("%.0f",id(Maintain_Sensitivity).state) + " " + str_sprintf("%.0f",id(Trigger_Sensitivity).state) + "\r\n";
return std::vector<uint8_t>(sensitivityss.begin(), sensitivityss.end());
- delay: 500ms
- uart.write: "saveConfig\r\n"
- delay: 500ms
- switch.turn_on: mmwave_sensor
- platform: template
name: Detection Delay #Confirmation delay Value range: 0 ~ 100 default 0.050 seconds.
id: Detection_Delay
entity_category: config
min_value: 0.1
max_value: 60
initial_value: 0.1
optimistic: true
step: 0.1
restore_value: true
unit_of_measurement: seconds
mode: slider
set_action:
- switch.turn_off: mmwave_sensor
- delay: 500ms
- uart.write: !lambda |-
std::string detections = "setLatency " + str_sprintf("%.1f",id(Detection_Delay).state) + " " + str_sprintf("%.0f",id(Fading_Time).state) + "\r\n";
return std::vector<uint8_t>(detections.begin(),detections.end());
- delay: 500ms
- uart.write: "saveConfig\r\n"
- delay: 500ms
- switch.turn_on: mmwave_sensor
- platform: template
name: Fading Time #Fade-out delay Value range: 0.5 ~ 1500, default 15 seconds.
id: Fading_Time
entity_category: config
min_value: 1
max_value: 300
initial_value: 15
optimistic: true
step: 1
restore_value: true
unit_of_measurement: seconds
mode: auto
set_action:
- switch.turn_off: mmwave_sensor
- delay: 500ms
- uart.write: !lambda |-
std::string fadings = "setLatency " + str_sprintf("%.1f",id(Detection_Delay).state) + " " + str_sprintf("%.0f",id(Fading_Time).state) + "\r\n";
return std::vector<uint8_t>(fadings.begin(), fadings.end());
- delay: 500ms
- uart.write: "saveConfig\r\n"
- delay: 500ms
- switch.turn_on: mmwave_sensor
- platform: template
name: Blockade Time #Configure block time Value range: 1 ~ 255, default 1 seconds.
id: Blockade_Time
entity_category: config
min_value: 1
max_value: 255
initial_value: 1
optimistic: true
step: 1
restore_value: true
unit_of_measurement: seconds
mode: slider
set_action:
- switch.turn_off: mmwave_sensor
- delay: 500ms
- uart.write: !lambda
std::string blockades = "setInhibit " + str_sprintf("%.0f",x) + "\r\n";
return std::vector<uint8_t>(blockades.begin(), blockades.end());
- delay: 500ms
- uart.write: "saveConfig\r\n"
- delay: 500ms
- switch.turn_on: mmwave_sensor
button:
- platform: factory_reset
name: Restart with Factory Default Settings
id: Reset
entity_category: config
internal: true
- platform: template
name: "Reset device"
id: "factory_reset_device"
entity_category: config
on_press:
- switch.turn_off: mmwave_sensor
- delay: 500ms
- uart.write: "resetCfg\r\n"
- delay: 1s
- switch.turn_on: mmwave_sensor
- button.press: Reset
- platform: restart
name: Restart_esp
id: restart_esp
entity_category: config
internal: true
- platform: template
name: "Restart_mmWave"
id: "restart_mmwave"
entity_category: config
internal: true
on_press:
- uart.write: "resetSystem\r\n"
- platform: template
name: Restart device
entity_category: config
on_press:
- button.press: restart_mmwave
- delay: 1s
- button.press: restart_esp
text_sensor:
- platform: wifi_info
ip_address:
name: "IP Address"
ssid:
name: "Connected SSID"
mac_address:
name: "Mac Address"
time:
- platform: sntp
id: my_time
