LSC Smart Connect 1500lm 22W Ceiling Lamp 3206306

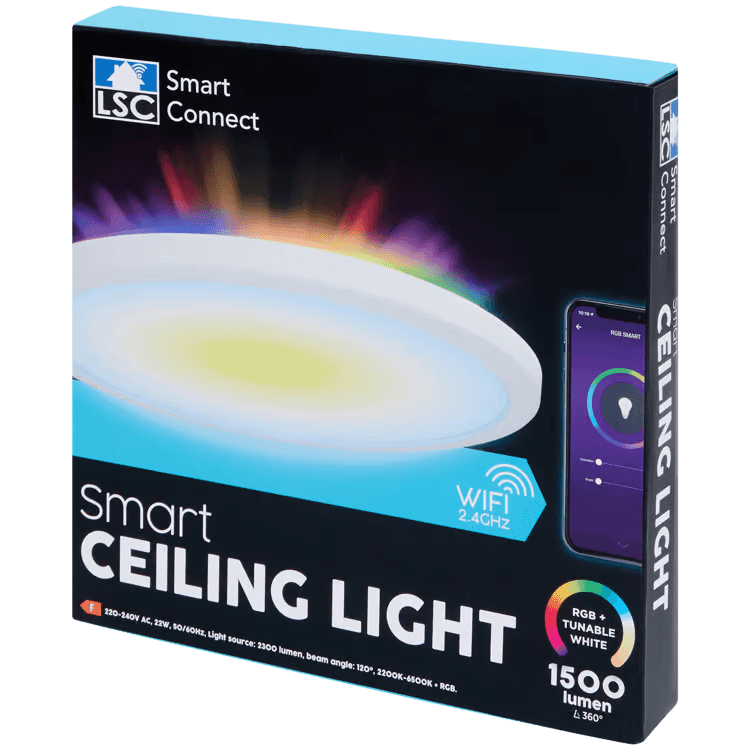

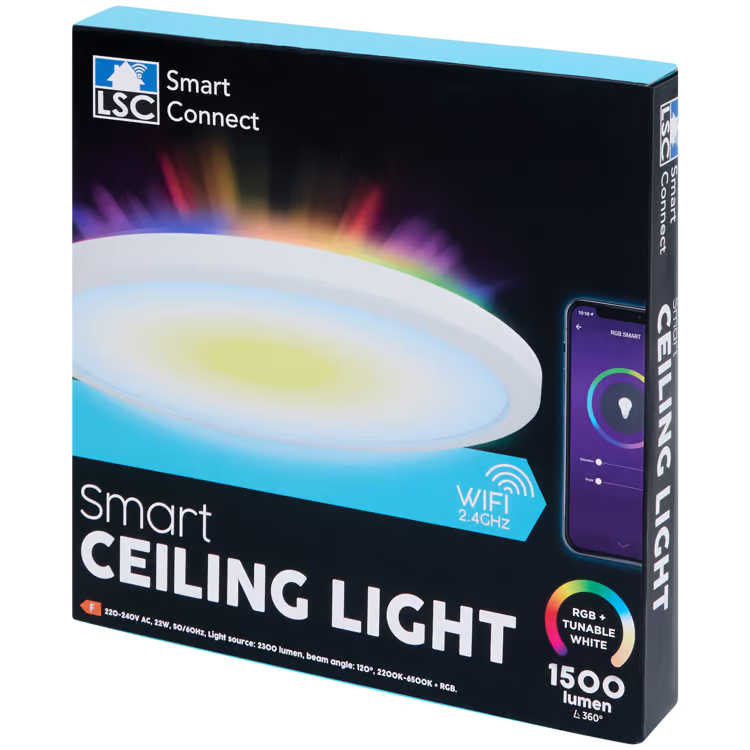

Product Images

GPIO Pinout

Pin	Function
P16	PWM 47 (outer rgb)
P24	PWM 5 (main warm)
P26	PWM 4 (main cold)

Basic configuration

esphome:
  name: lsc-ceiling-light
  friendly_name: lsc-ceiling-light

bk72xx:
  board: generic-bk7231n-qfn32-tuya

logger:

api:

ota:
  - platform: esphome

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  ap:

light:
  - platform: beken_spi_led_strip
    name: "Outer RGB"
    pin: P16
    chipset: SM16703
    num_leds: 120 # copied from OpenBekenIOT (not verified)
    rgb_order: RGB
    restore_mode: RESTORE_DEFAULT_ON
  - platform: cwww
    id: light_cwww
    name: "Main"
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
    cold_white: output_cold
    warm_white: output_warm
    restore_mode: RESTORE_DEFAULT_ON

output:
  - platform: libretiny_pwm
    id: output_cold
    pin: P26
  - platform: libretiny_pwm
    id: output_warm
    pin: P24
