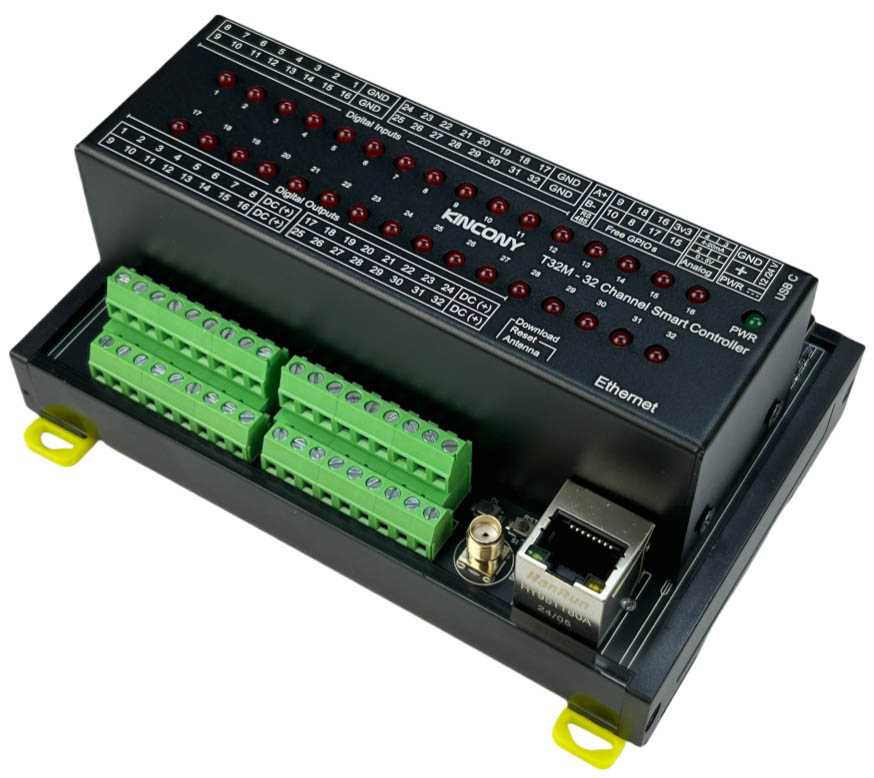

KinCony-T32M (ESP32-S3 32CH Mosfet board)

KinCony-T32M (ESP32-S3 32CH Mosfet board)

Device Type: relay
Electrical Standard: global
Board: esp32

Product

Resources

ESPHome Configuration

Here is an example YAML configuration for the KinCony T32M board.

esphome:
  name: t32m
  friendly_name: t32m


esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: esp-idf


# Enable logging
logger:
  hardware_uart: USB_SERIAL_JTAG


# Enable Home Assistant API
api:


ethernet:
  type: W5500
  clk_pin: GPIO42
  mosi_pin: GPIO43
  miso_pin: GPIO44
  cs_pin: GPIO41
  interrupt_pin: GPIO2
  reset_pin: GPIO1


i2c:
   - id: bus_a
     sda: 48
     scl: 47
     scan: true
     frequency: 400kHz


pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-16
    i2c_id: bus_a
    address: 0x21
    pcf8575: true


  - id: 'pcf8574_hub_out_2'  # for output channel 17-32
    i2c_id: bus_a
    address: 0x20
    pcf8575: true


  - id: 'pcf8574_hub_in_1'  # for input channel 1-16
    i2c_id: bus_a
    address: 0x25
    pcf8575: true


  - id: 'pcf8574_hub_in_2'  # for input channel 17-32
    i2c_id: bus_a
    address: 0x24
    pcf8575: true


switch:
  - platform: gpio
    name: "t32m-output01"
    id: "t32m_output01"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output02"
    id: "t32m_output02"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output03"
    id: "t32m_output03"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output04"
    id: "t32m_output04"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output05"
    id: "t32m_output05"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output06"
    id: "t32m_output06"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output07"
    id: "t32m_output07"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output08"
    id: "t32m_output08"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output09"
    id: "t32m_output09"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 8
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output10"
    id: "t32m_output10"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 9
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output11"
    id: "t32m_output11"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 10
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output12"
    id: "t32m_output12"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 11
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output13"
    id: "t32m_output13"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 12
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output14"
    id: "t32m_output14"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 13
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output15"
    id: "t32m_output15"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 14
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output16"
    id: "t32m_output16"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 15
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output17"
    id: "t32m_output17"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output18"
    id: "t32m_output18"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output19"
    id: "t32m_output19"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output20"
    id: "t32m_output20"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output21"
    id: "t32m_output21"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output22"
    id: "t32m_output22"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output23"
    id: "t32m_output23"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output24"
    id: "t32m_output24"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output25"
    id: "t32m_output25"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 8
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output26"
    id: "t32m_output26"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 9
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output27"
    id: "t32m_output27"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 10
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output28"
    id: "t32m_output28"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 11
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output29"
    id: "t32m_output29"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 12
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output30"
    id: "t32m_output30"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 13
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output31"
    id: "t32m_output31"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 14
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t32m-output32"
    id: "t32m_output32"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 15
      mode: OUTPUT
      inverted: true


binary_sensor:
  - platform: gpio
    name: "t32m-input01"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input02"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input03"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input04"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input05"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input06"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input07"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input08"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input09"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 8
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input10"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 9
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input11"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 10
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input12"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 11
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input13"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 12
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input14"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 13
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input15"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 14
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input16"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input17"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input18"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input19"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input20"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input21"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input22"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input23"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input24"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input25"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 8
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input26"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 9
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input27"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 10
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input28"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 11
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input29"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 12
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input30"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 13
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input31"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 14
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t32m-input32"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 15
      mode: INPUT
      inverted: true


## pull-up resistance on PCB
  - platform: gpio
    name: "t32m-W1-io15"
    pin:
      number: 15
      inverted: true


  - platform: gpio
    name: "t32m-W1-io16"
    pin:
      number: 16
      inverted: false


  - platform: gpio
    name: "t32m-W1-io17"
    pin:
      number: 17
      inverted:  false


  - platform: gpio
    name: "t32m-W1-io18"
    pin:
      number: 18
      inverted:  false


## without pull-up resistance on PCB
  - platform: gpio
    name: "t32m-io0"
    pin:
      number: 0
      inverted:  false


  - platform: gpio
    name: "t32m-io8"
    pin:
      number: 8
      inverted:  false


  - platform: gpio
    name: "t32m-io9"
    pin:
      number: 9
      inverted:  false


  - platform: gpio
    name: "t32m-io10"
    pin:
      number: 10
      inverted:  false


sensor:
  - platform: adc
    pin: 7
    name: "t32m A1 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      - lambda:
          if (x >= 3.11) {
            return x * 1.60256;
          } else if (x <= 0.15) {
            return 0;
          } else {
            return x * 1.51;
          }
  - platform: adc
    pin: 6
    name: "t32m A2 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      # - multiply: 1.51515
      - lambda:
          if (x >= 3.11) {
            return x * 1.60256;
          } else if (x <= 0.15) {
            return 0;
          } else {
            return x * 1.51;
          }
  - platform: adc
    pin: 5
    name: "t32m A3 Current"
    update_interval: 5s
    unit_of_measurement: mA
    attenuation: 11db
    filters:
      - multiply: 6.66666666
  - platform: adc
    pin: 4
    name: "t32m A4 Current"
    update_interval: 5s
    unit_of_measurement: mA
    attenuation: 11db
    filters:
      - multiply: 6.66666666
Edit this page on GitHub

On this page
