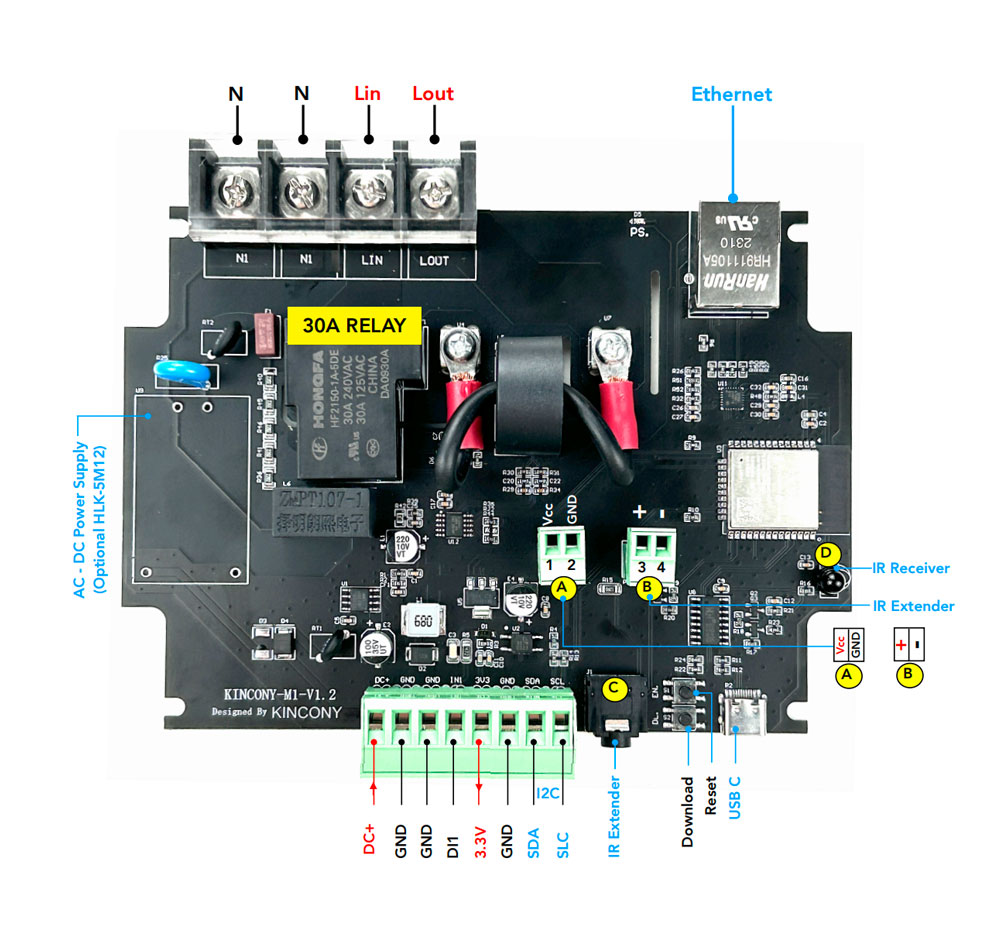

KinCony-M1 AC energy meter

KinCony-M1 AC energy meter

Device Type: sensor
Electrical Standard: global
Board: esp32

Product

Resources

ESPHome Configuration

Here is an example YAML configuration for the KinCony-KC868-M1 board with custom sensor integration.

esphome:
  name: m1
  platform: ESP32
  board: esp32dev
uart:
  - id: uart_bus
    tx_pin: GPIO13
    rx_pin: GPIO14
    baud_rate: 9600
    stop_bits: 1


# Enable logging
logger:


# Enable Home Assistant API
api:


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0


sensor:
  - platform: bl0942
    uart_id: uart_bus
    update_interval: 3s
    voltage:
      name: 'M1 Voltage'
    current:
      name: 'M1 Current'
      filters:
        multiply: 0.1965
    power:
      name: 'M1 Power'
    energy:
      name: 'M1 Energy'
    frequency:
      name: "M1 Frequency"
      accuracy_decimals: 2


switch:
  - platform: gpio
    pin: 33
    name: "M1-relay"


binary_sensor:
  - platform: gpio
    pin: 32
    name: "M1-sensor-DI"
