Jeeo TF-SH330

Jeeo TF-SH330

Device Type: plug
Electrical Standard: us
Board: esp8266

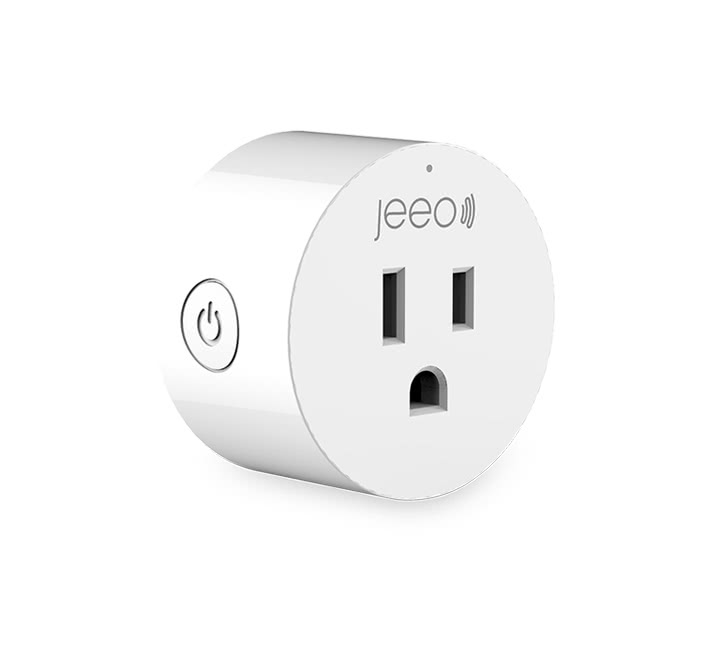

Product Images

alt text

Inspired by the Tasmota template: https://templates.blakadder.com/jeeo_TF-SH330.html

GPIO Pinout

PinFunction
GPIO0Blue Status LED
GPIO13Switch Input
GPIO15Mains Relay

Basic Configuration

esphome:
  name: jeeoa
  platform: ESP8266
  board: esp01_1m


# Enable logging
logger:


# Enable Home Assistant API
api:


ota:
  password: !secret ota_password


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password


  ap:
    ssid: "Jeeo Fallback Hotspot"
    password: !secret fallback_wifi_password


captive_portal:


binary_sensor:
  - platform: gpio
    id: button
    internal: true
    pin:
      number: 13
      mode: INPUT
      inverted: true
    on_press:
      - then:
          - switch.toggle:
              id: socket_relay
    name: button


switch:
  - platform: gpio
    name: Socket
    id: socket_relay
    pin:
      number: 15
      mode: OUTPUT
      inverted: false
    on_turn_on:
      - then:
          - light.turn_on:
              id: status_led
              state: true
    on_turn_off:
      - then:
          - light.turn_off:
              id: status_led
              state: false
    restore_mode: RESTORE_DEFAULT_OFF
    interlock_wait_time: 0ms


output:
  - platform: gpio
    id: led
    pin:
      number: 0
      inverted: true
      mode: OUTPUT


light:
  - platform: binary
    name: Status LED
    id: status_led
    internal: true
    output: led
    restore_mode: RESTORE_DEFAULT_OFF
