Rowi ESP32 Smart Plug AU and NZ

Rowi ESP32 Smart Plug AU and NZ

Device Type: plug
Electrical Standard: au
Board: esp32

ESP32-based Smart Plug (Rowi), delivered with the pre-flashed ESPHome firmware - no need to open the device!

Configuration: ESP32, Embedded temperature sensor SHTC3, RGB LED.

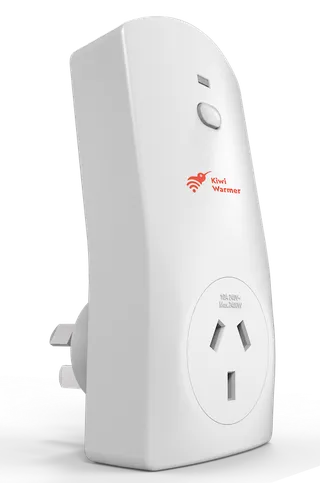

alt text

Maker: Vaiotech (https://www.vaiotech.co.nz/products/)

Purchase online in Australia and New Zealand: https://www.kiwi-warmer.co.nz/for-developers/

GPIO Pinout

PinFunction
GPIO4Button
GPIO2Relay
GPI18LED RED (inverted)
GPI19LED GREEN (inverted)
GPI21LED BLUE (inverted)
GPI16I2C_SDA
GPI17I2C_SCL

Basic Configuration

substitutions:
  name: rowi-plug
  friendly_name: "Rowi Plug"


esphome:
  name: ${name}
  name_add_mac_suffix: true
  project:
    name: "kiwi-warmer.rowi-plug"
    version: "1.0"


esp32:
  board: nodemcu-32s


wifi:
  ap: {}


captive_portal:


logger:


api:


ota:


web_server:


dashboard_import:
  package_import_url: github://vt-vaio/rowi/rowi-plug.yaml@main


binary_sensor:
  - platform: gpio
    pin:
      number: GPIO4
      mode:
        input: true
        pullup: true
      inverted: true
    name: "${friendly_name} Button"
    disabled_by_default: true
    on_click:
      - switch.toggle: relay


  - platform: status
    name: "${friendly_name} Status"


switch:
  - platform: gpio
    name: "${friendly_name}"
    pin: GPIO2
    id: relay


output:
  - platform: ledc
    id: red
    pin:
      number: GPIO18
      inverted: true
  - platform: ledc
    id: green
    pin:
      number: GPIO19
      inverted: true
  - platform: ledc
    id: blue
    pin:
      number: GPIO21
      inverted: true


light:
  - platform: rgb
    name: ${friendly_name}
    disabled_by_default: true
    id: rgb_light
    red: red
    green: green
    blue: blue


i2c:
  sda: GPIO16
  scl: GPIO17


sensor:
  - platform: shtcx
    temperature:
      name: "${friendly_name} Temperature"
    humidity:
      name: "${friendly_name} Humidity"


  - platform: uptime
    name: "${friendly_name} Uptime"
    disabled_by_default: true
    id: uptime_sensor


text_sensor:
  - platform: wifi_info
    ip_address:
      name: "${friendly_name} IP Address"
      disabled_by_default: true
