Arthofer Engineering WiFi Fan Controller
Device Type:
Electrical Standard:
Board:
Difficulty:Comes with ESPhome (1/5)
Project URL:https://github.com/zeroflow/wifi-fancontroller
Description
The Arthofer Engineering WiFi Fan Controller is a 4-channel PWM fan controller with the following features:
- 4× PWM Fan Outputs with RPM monitoring
- Supports standard 12V 4-pin PWM fans
- 12V DC Barrel Input (5.5x2.1mm)
- Low power operation: 0.25W typical, 0.07W deep sleep
- Integrated HDC1080 Temperature & Humidity Sensor
- RGB Status LEDs for board and fan ports (Rev 3.x)
- Qwiic Expansion Port for easy sensor additions
- I2C Expansion Port (2.54mm Header)
- 5V NeoPixel Output Port
- 3 User Buttons for custom functions
- GPIO Expansion Pads (2.54mm SMD Header)
- USB-C for programming (Rev 2.0+)
Quickstart
- Plug in the Fan Controller.
- Connect to “fancontroller-*” WiFi hotspot.
- Input WiFi credentials.
- In Home Assistant, look at discovered devices.
Configuration
The current firmware configuration is fetched live from the upstream repository:
# Loading https://github.com/zeroflow/wifi-fancontroller/blob/main/fancontroller-rev3.3-esp32s2.yaml…Links

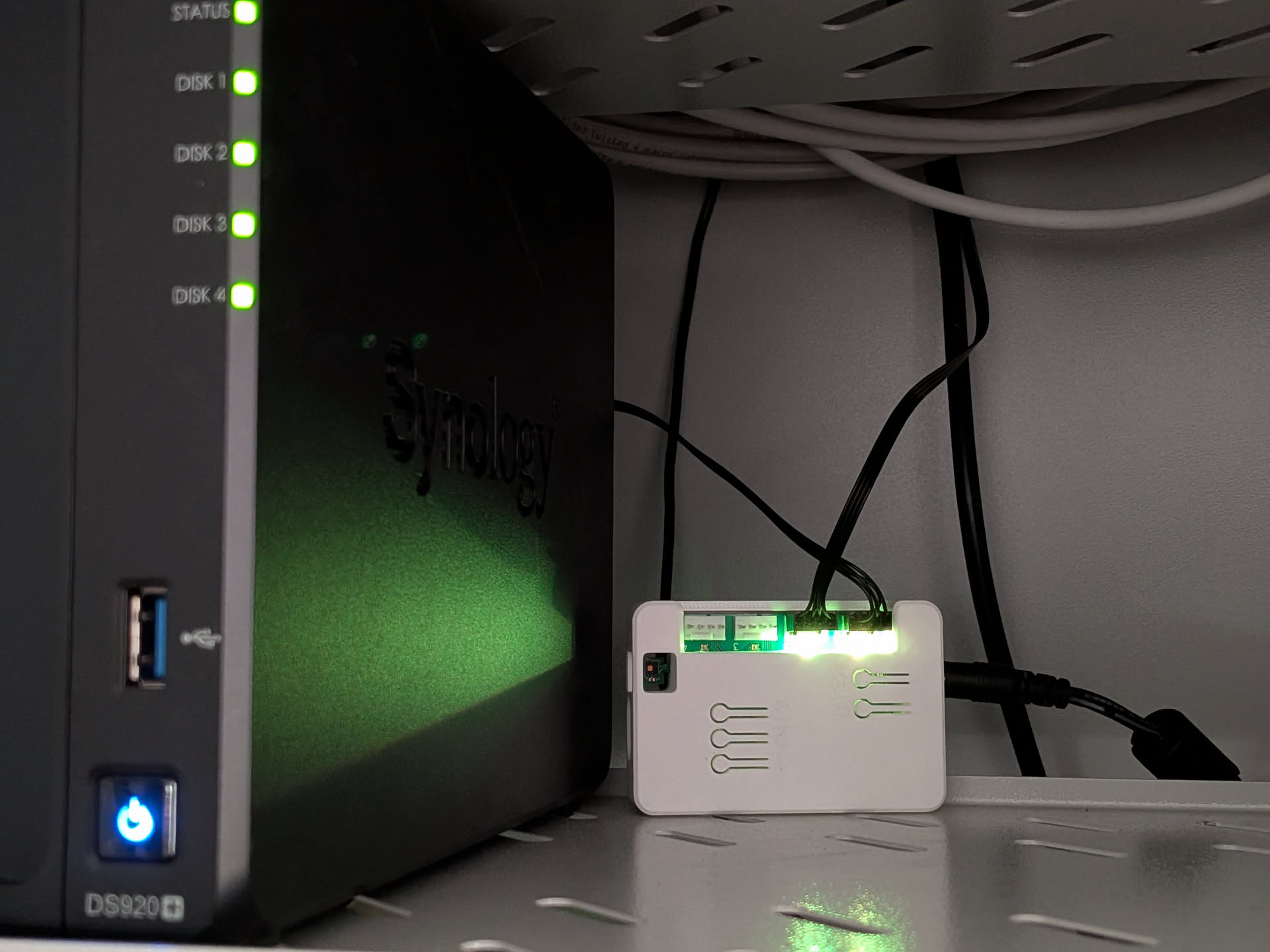

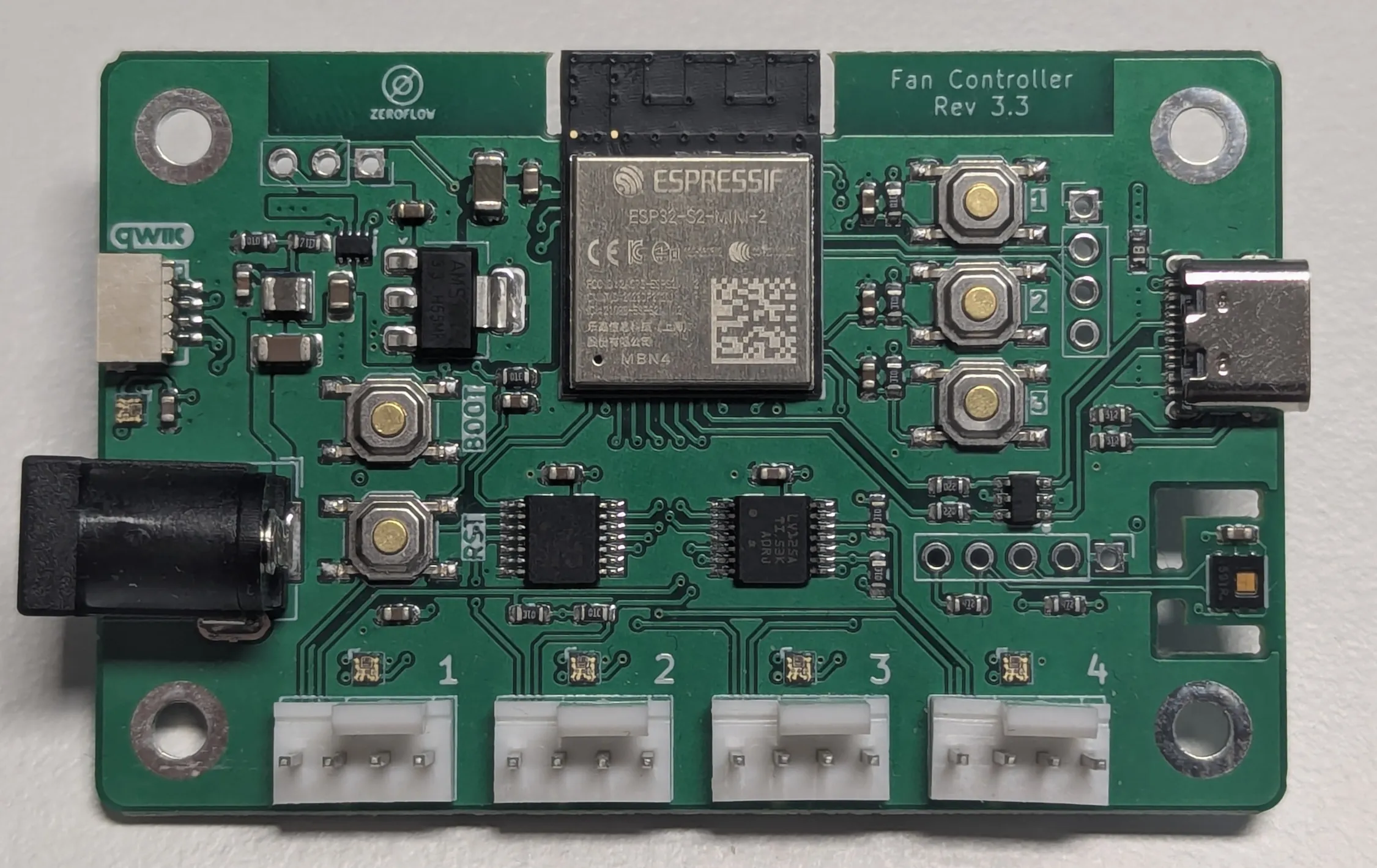

Product Images
