Apollo PoE mmWave Multisensor (R_PRO-1)
Apollo PoE mmWave Multisensor (R_PRO-1)
Device Type: sensorElectrical Standard: globalBoard: esp32Difficulty: Comes with ESPhome, 1/5Project URL: https://github.com/ApolloAutomation/R_PRO-1
Description
The Apollo Automation R_PRO-1 is a PoE mmWave multisensor with the following features:
- PoE or wifi. The board can be powered from PoE through the vertical RJ45, this also provides the internet connection to the board for rock solid connection. It can also be powered from USBC with ethernet or wifi for the connection
- ld2412 mmWave - This mmWave has great still detection and is lightning fast. It is fully configurable from Home Assistant and has a auto calibrate feature.
- ld2450 mmWave - This mmWave can track the x/y coordinates of 2 targets in a room. Meaning you don't just know someone is in the room, you know if they are on the couch or near the TV.
- ltr390 - Provides both LUX and UV values. This will let you know how bright the room is and if there is sunlight or not.
- Expansion port on the back for additional sensors such as CO2, GPIO, or other
- RGB Pixels: Notify you of the status
- Buzzer: Can play beeps, and RTTTL tones when outside a specified temperature range
- Bluetooth tracking and Bluetooth proxy
Mounting

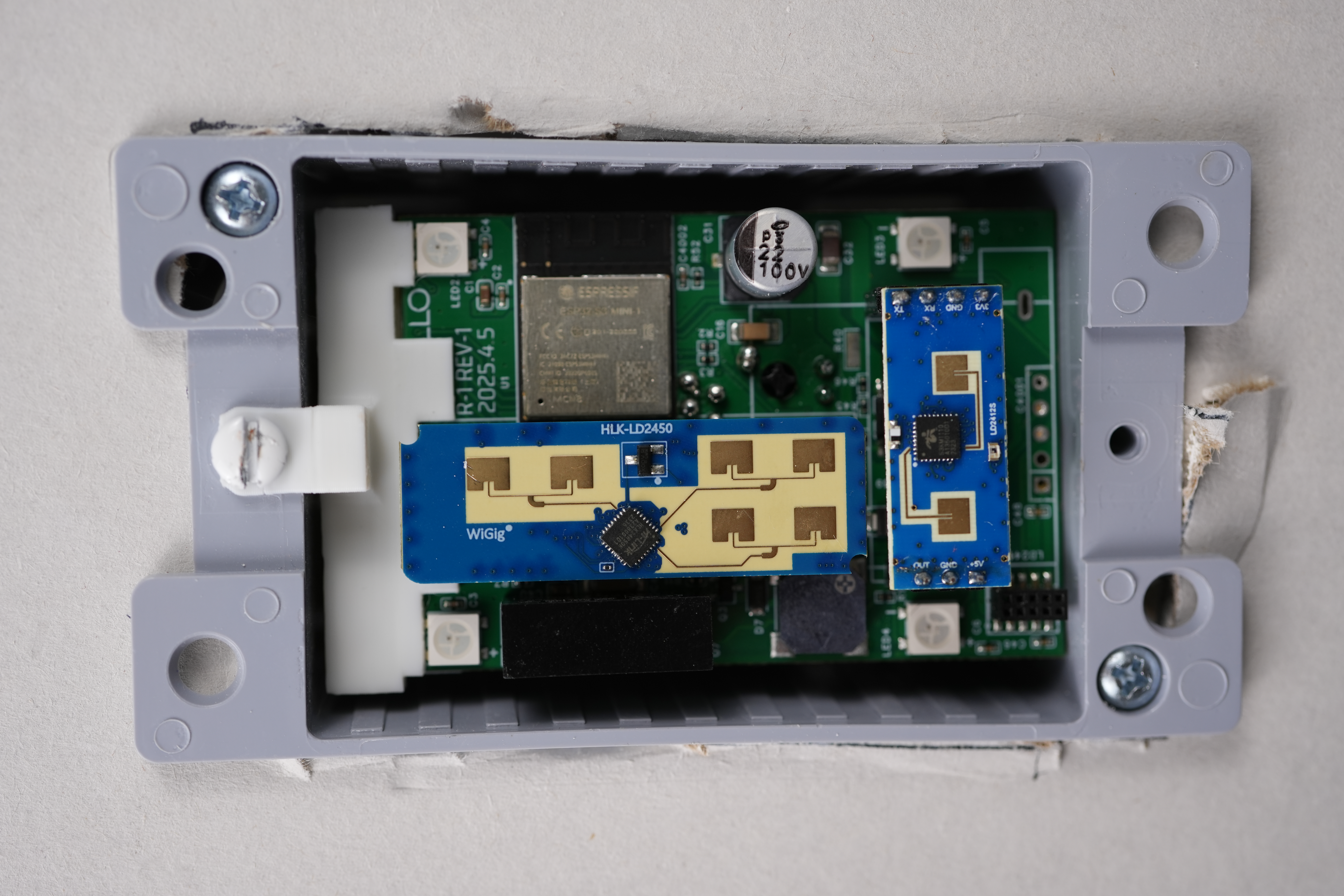

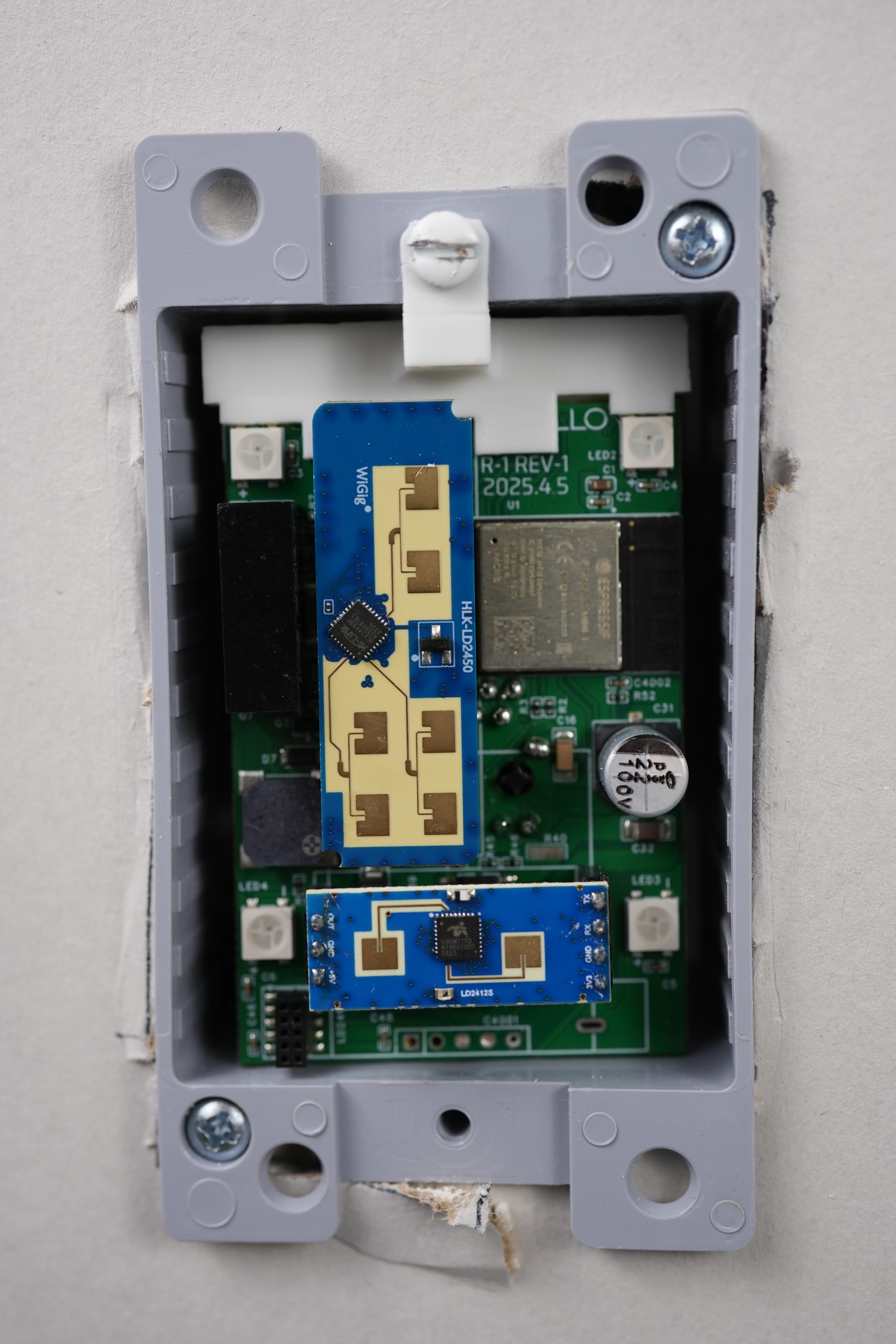

The R_PRO-1 has been designed to fit both in recessed ceiling mounts and wall gang boxes. This provides a clean and non intrusive way to place the sensor in a room.
Quickstart
- Plug in the R_PRO-1 into USB power.
- Connect to "R_PRO-1 Hotspot".
- Input WiFi credentials.
- In Home Assistant, look at discovered devices.
- If you'd like to switch to the ethernet version please follow the guide on our wiki
